SUPPORT semua DELTA Fan 4 pin PWM yg dijual di TEKNOZA

Note that this model is PWM speed regulation, and the speed regulation frequency is about 25K. PWM is the speed control signal, P is the 12V positive pole, G is the 12V negative pole. Do not make a mistake in the wiring sequence. If you make a mistake, it will be damaged. If you do not understand, you can contact customer service.

(1) Working voltage: DC12V

(2) Control power: It can bring 8 fans at the same time, PWM fan speed control, 4-wire with PWM speed control port can be used in general, pay attention to the fan interface sequence is commonly used. The maximum power of a single fan is within 60W, and the total power is within 300W (note that the total power also depends on the power of the chassis power supply)

(3) Quiescent current: 0.015A (standby state)

(4) PWM duty cycle: 0%-100%

(5 )PWM frequency: 25khz

Dimensions: 60MMx width 35MM total height about 16MM

Peringatan!

Kualitas, kondisi dan fungsi barang sudah dicek sebelumnya oleh toko.

Barang yang sudah dibeli tidak dapat dikembalikan atas dasar alasan apapun, kasalahan pada saat order oleh pembeli bukan tanggujawab toko.

Membeli berarti setuju.

Disclaimer!

Membeli berarti mengerti fungsi dan cara penggunaannya, mohon maaf jika tidak dapat membantu untuk konsultasi.

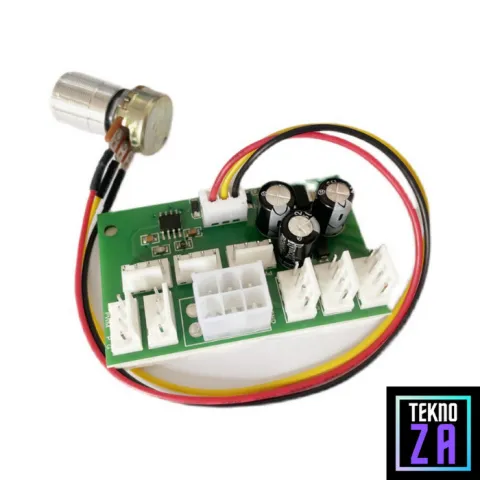

8 Port 4pin Fan Hub & Fan Speed Regulator PWM 6pin PCIe Power max 300W
