Models: POW-M60-PRO

Charging mode: MPPT Maximum power point tracking automatically

Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge

System type: DC12V/24V/36V/48V Recognition automatically

12V system (DC9V-DC15V)

24V system (DC18V-DC29V)

36V system (DC30V-DC39V)

48V system (DC40V〜DC60V)

The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)

12V system (720W)

24V system (1440W)

36V system (2100W)

48V system (2800W)

Soft start time <1S

Dynamic response and recovery time >98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency)

PV utilization >99%

Input specification

VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)

12V system (DC20V〜DC80V)

24V system (DC37V-DC105V)

36V system (DC50V〜DC160V)

48V system (DC72V〜DC160V)

The maximum PV input voltage (Voc)

DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)

Output specification

Selectable battery type(default is Sealed)

Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Absorption Charging Voltage

Refer to Batteries charging reference

Floating Charging Voltage

Refer to Batteries charging reference

Overcharging protection voltage

12V system (15V)

24V system (30V)

36V system (45V)

48V system (60V)

Rated output current 60A

Temperature Coefficient ±0.02%/ °C

Automatic temperature compensation 14.2V-(Max temperature-25 °C)*0.3

Output voltage ripple-peak 100mv

Output voltage accuracy <±1%

Input Anti-intrusion protection yes

Temperature Protection 75°C

Temperature increased protection

Output power will reduce when it's more than 70 °C

Output power will be normal when it's less than 55 °C

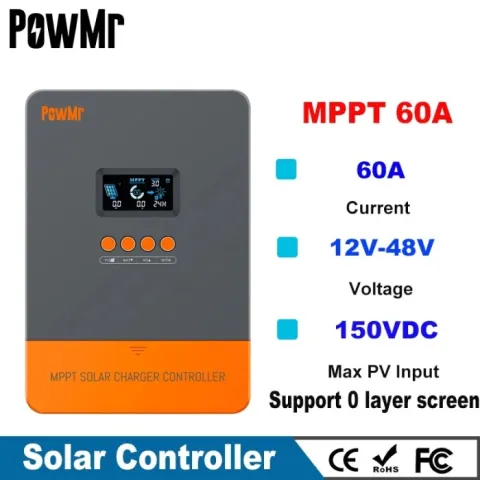

PoWmr Pro 60a solar charge controller mppt 12v 24v 36v 48v
