Mppt Solar Charge Controller 100A Max PV 200V

Baterai Voltage 12V / 24V / 36V / 48V (Auto Deteksi)

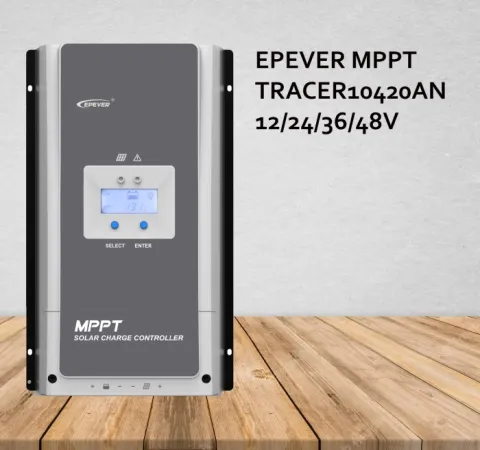

EPEVER Model Tracer10420AN

Specification

Nominal System Voltage : 12/24/36/48VDC Auto

Battery Input Voltage Range : 8V~68V

Battery Type : Sealed(Default)/Gel/Flooded/User Defined

Battery fuse : 80A/58V

Rated charge power : 1250W/12V 2500W/24V 3750W/36V 5000W/48V

Max. PV open circuit voltage : 200V

MPP Voltage Range : (Battery Voltage +2V)~144V

Tracking efficiency : =99.5%

Max. conversion efficiency : 98.3%

Full load efficiency : 97.6%

Temperature compensate coefficient : -3mV/°C/2V(Default)

Self-consumption : 98mA/12V;60mA/24V;50mA/36V;46mA/48V

Grounding : Common negative grounding

Relay : Rated Value:5A/30VDC; Max. Value:0.5A/60VDC

RS485 interface : RS485(RJ45)

LCD backlight time : Default:60S,Range:0~999S(0S:the backlight is ON all the time)

Ambient temperature range : -25°C~+60°C(Derate above 45°C)

LCD temperature range : -20°C~+70°C

Storage temperature range : -30°C~+85°C

Relative humidity range : 5% to 95% (N.C.)

Enclosure : IP20

Pollution degree : PD2

Dimension : 394×242×143mm

Mounting dimension : 300×230mm

Mounting hole size : dia. 7

Terminal : 2AWG/35mm2

Recommended cable : 2AWG/35mm2

Safety : EN/IEC62109-1

EMC : EN61000-6-3/EN61000-6-1

FCC : 47 CFR Part 15, Subpart B

ROHS : IEC62321-3-1

Epever MPPT 100a solar charge controller Tracer10420AN 12v 24v 36v 48v

Rp 5.500.000
