Reference description:

Display: HD LCD color display

Display color: red orange yellow white green blue

Protruding size: 45X16MM

Installation method: rail type

Function test: AC voltage, current, power, frequency, electric energy, power factor

Measuring speed: 2 times per second

User's manual

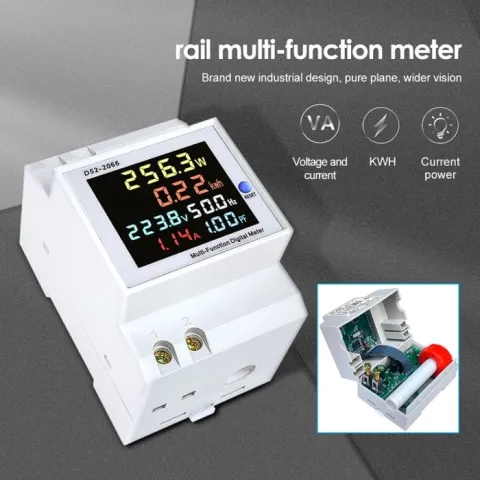

D52-2066 guide rail type digital display multi-function meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color full-view high-definition LCD display to display the measurement results.

Main Specifications

1.Accuracy: 1%±2 words

2. Measuring range: AC voltage: AC40-300V, (or AC200-450V)

Alternating current: AC0-100.0A, current display resolution is 0.01A

Power frequency: 45.0Hz-65.0Hz

Power factor: 0.00-1.00PF

Active power: The measurement range is 0-45000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W

Electricity: The measuring range is 0-99999kwh, the minimum display resolution of 0-999.99kwh is 0.01kwh

1000.0-9999.9kwh minimum display resolution is 0.1kwh

The minimum resolution of 10000.0-99999kwh is 1kwh

Measuring speed: about 2 times per second

Installation method: rail type

Speed: 2 times per second

Size: 54×80×64
