Shinzo Stabilizer Technical Specifications:

Model: SVC - 8 KVA

Brand: Shinzo

Input Voltage: 140V ~ 250V

Output Voltage: 220V ± 2%

Phase: Single Phase

Indicator Display: Digital Voltmeter & Ampere Meter

Power: 8 KVA

Frequency: 50Hz/60Hz

Rated Current: 32A

Efficiency: More than 90%

Product Dimensions (LxWxH): 37.5cm x 32.5cm x 59.5cm

Product Weight (Net): 46 kg

Product Weight (Gross): 50.6 kg

Working System: Fully Automatic

Cooling System: Cooled Fan With Thermostat Sensor

Control System: DC Servo Motor

Response Time: Within 0.5 sec. ~ 1 sec. against 10% input voltage deviation

Ambient Temperature: -5°C ~ +35°C

Ambient Humidity: Less than 90% (Relative Humidity)

Temperature Rise: Less than 70°C

Insulation Resistance: >2 MΩ

Wave Distortion: ≤1%

Output Voltage Accuracy: ±2%

Withstand Voltage: 2000 V/min

Isolation Resistance: >2 MΩ

Output Protection: 250V Automatic Cut-off

Package: Plywood Box

Sangat cocok untuk:

- Industri

- Hotel

- Rumah sakit

- Bengkel

- Gudang

- Laboratorium

- Gereja

- Masjid

- Sekolah

- Pom bensin

- Perumahan DII.

- Rumah, ruko, warnet, sekolah, hotel, rumah sakit, laboratorium, bengkel, industri rumahan, pabrik,

gudang, dan sebagainya.

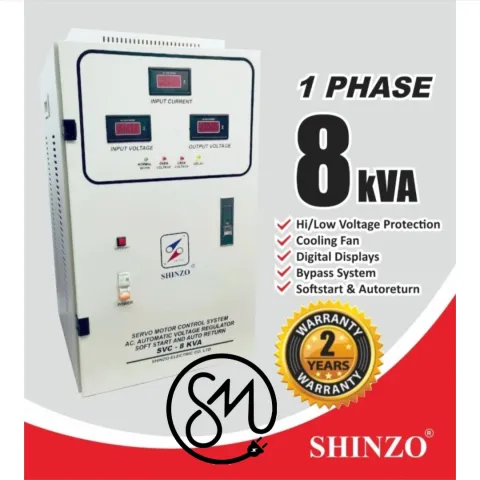

Stabilizer SHINZO SVC 8KVA Stabil 8000 w watt SVC8000 Digital

Rp 6.910.000
