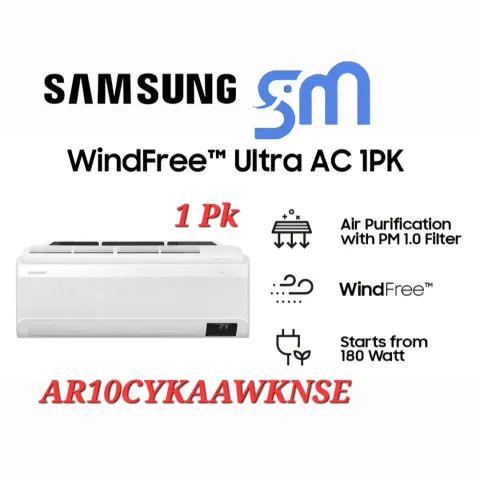

Samsung AC WindFree Ultra 1PK - AR10CYKAAWKNSE

Capacity

Capacity (Cooling, Btu/hr) : 9000 Btu/hr

Capacity (Cooling, Min - Max, Btu/hr) : 3000 - 11500 Btu/hr

Capacity (Cooling, kW) : 2.64 kW

Capacity (Cooling, Min - Max, kW) : 0.88 - 3.37 kW

Electrical Data

Power Source(Φ/V/Hz) : 1 / 220-240 / 50

Power Consumption(Cooling, W) : 700 W

Operating Current(Cooling, A) : 3.8 A

Physical specification

Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜) : 880*290*410 mm

Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 778*525*331 mm

Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜) : 820*345*215 mm

Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 660*475*242 mm

Gross Weight (Indoor, kg) : 11.7 kg

Gross Weight (Outdoor, kg) : 22.0 kg

Net Weight (Indoor, kg) : 10.3 kg

Net Weight (Outdoor, kg) : 20.1 kg

Loading Quantity (20/40/40Hft without Pipe) : 112/232/270

Technical Information

Piping Length (Max, m) : 15 m

Piping Height (Max, m) :8 m

SVC Valve (Liquid (ODxL)) : 6.35

SVC Valve (Gas (ODxL)) : 9.52

Moisture Removal (l/hr) : 1.0 l/hr

Air Circulation (Cooling, ㎥/min) : 11.7 ㎥/min

Refrigerant (Type) : R32

Refrigerant (Charging, kg) : 0.50 kg

Refrigerant (Charging, tCO2e) : 0.34tCO2e

Low Ambient (Cooling, ℃) : 16~46 ℃

Outdoor Unit (Compressor Type) : BLDC

Outdoor Unit (Anti-Corrosion Fin) : Yes

Air Flow

WindFree Cooling : Yes

Air Direction Control (Up/Down) : Auto

Air Direction Control (Left/Right) : Auto

Air Flow Control Step (Cool/Fan) : 5/4

Air Purification

PM 1.0 Filter : Yes

Auto Clean (Self Cleaning) : Yes

AC Samsung AR10CYKAAWKNSE 1 PK Windfree AI Inverter Wind Free

Rp 8.550.000
