*unit only

Harga belum termasuk pemasangan dan material.

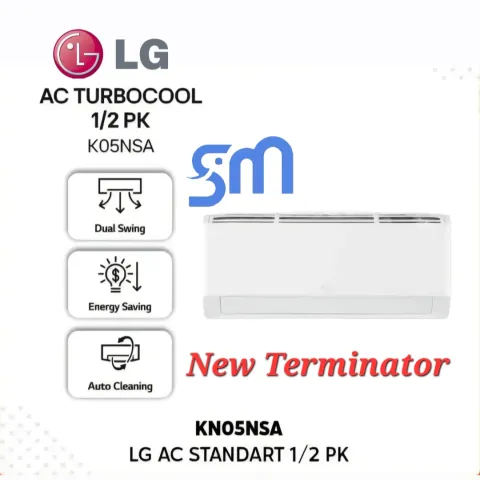

LG AC 0.5 PK K05NSA New Terminator / 1/2 PK K05NSA - Gold Fin - Auto Cleaning - Dual Swing - Energy Save

[Fitur Produk]

LG Air Conditioner – Model K05NSA

Capacity: 5,000 Btu/h | Energy Star: 3 | Refrigerant: R32 (GWP 675)

General Specification

• Cooling Capacity (Rated): 5,000 Btu/h

• Power Consumption (Rated): 370 W

• Running Current (Rated): 2.1 A

• CSPF (Cooling Seasonal Performance Factor): 3.80 W/W

• Power Supply: 1 Phase, 220V, 50Hz

• Circuit Breaker: 15 A

Indoor Unit

• Air Flow Rate (CMM): 8.0 / 5.3 / 4.3 / 2.7 / 2.3 (Po/H/M/L/SL)

• Fan Motor Speed (RPM): 1350 / 940 / 870 / 800 / 730 / 660 / 590

• Sound Pressure Level (dB): 35 / 31 / 29 / 27 (H/M/L/SL)

• Dimensions (W x H x D): 682 x 299 x 185 mm

• Weight (Net): 6.6 kg | Shipping: 7.6 kg

• Color: White (Munsell 7.5BG 10/2, RAL 9016)

• Fan Type: Cross Flow Fan

Outdoor Unit

• Air Flow Rate: 21 CMM

• Fan Speed: 900 RPM

• Sound Pressure Level: 51 dB (Front/Rear)

• Dimensions (W x H x D): 593 x 453 x 230 mm

• Weight (Net): 17.0 kg | Shipping: 18.6 kg

• Color: White

• Fan Type: Propeller Fan

• Motor: Welling AC Motor, Class B Insulation

Performance & Operation

• Operating Temperature Range (Cooling): 21 ~ 48℃

• Net Order Conversion Rate: 0.23%

• Drain Hose Size: 21.5 mm (OD) / 16.0 mm (ID)

Piping & Installation

• Pipe Size: Liquid 6.35 mm (1/4”), Gas 9.52 mm (3/8”)

• Pipe Connection: Flared (Indoor/Outdoor)

• Length (Min/Std/Max): 3 / 7.5 / 15 m

• No Charge Length: 7.5 m

• Max Elevation Difference: 5.0 m

• Additional Refrigerant Charge: 10 g/m

• Pre-Charged Refrigerant: 0.26 kg

Compressor

• Type: Rotary, Hermetic Motor Compressor

• Model: KSN46V01UAJE3

• Displacement: 4.6 cc

• Oil Type: VG68 (190 ± 10 cc)

• Manufacturer: GMCC (China)

Heat Exchanger

• Indoor Coil: Copper Tube / Aluminum Fin (Φ5 x 2R x 15C x 20FPI x 477.5 mm), PCM Protection, Slit Fin

• Outdoor Coil: Copper Tube / Aluminum Fin (Φ5 x 1R x 21C x 21FPI x 574 mm), Gold Protection, Slit Fin

AC LG 1/2 PK K05NSA New Terminator 0.5 1/2Pk Dual Swing Turbo cool

AC LG 1/2 PK K05NSA New Terminator 0.5 1/2Pk Dual Swing Turbo cool

Rp 3.400.000

Deskripsi
