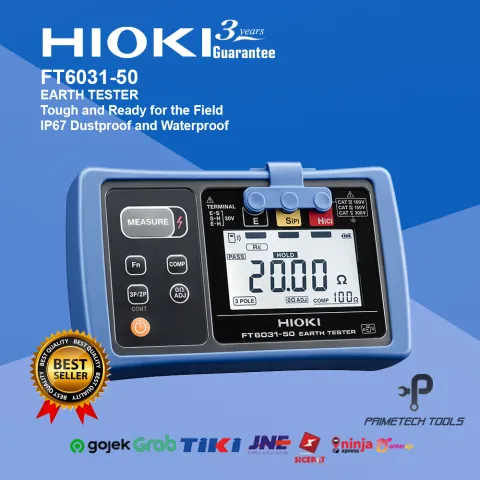

HIOKI FT6031-50

EARTH TESTER DIGITAL

DESKRIPSI

Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.

FITUR :

+ Tough and Ready for the Field

+ IP67 Dustproof and Waterproof

+ Excellent noise resistance

+ Using a grounding resistance meter: Two-pole and three-pole methods

+ Digital grounding resistance meter featuring easy operation

+ Tangle- and twist-free measurement cord winders

+ Instantly create reports by a free app (GENNECT Cross) - (Optional Wireless Adapter Z3210 is necessary)

+ Wireless support - Wireless communication capability for even greater convenience than FT6031 (legacy model)

(Optional Wireless Adapter Z3210 is necessary)

APA SAJA YANG TERMASUK DIDALAM PAKET?

1 x Auxiliary Earthing Rod L9840 (2 piece set)

1 x Measurement Cable L9841 (black 4 m)

1 x Measurement Cable L9842-11 (yellow 10 m, equipped with winder)

1 x Measurement Cable L9842-22 (red 20 m, equipped with winder)

1 x Carrying Case C0106

1 x Protector

4 x LR6 Alkaline battery

1 x Instruction manual

SPESIFIKASI

Item Code : FT6031-50

Measurement system : Two-electrode method/three-electrode method (switchable)

Measurement range : 20 Ω (0 Ω〜20.00 Ω)/ 200 Ω (0 Ω〜200.0 Ω)/ 2000 Ω (0 Ω〜2000 Ω)

Accuracy : ±1.5% rdg ±8 dgt / ±1.5% rdg ±4 dgt / ±1.5% rdg ±4 dgt

Earth voltage : 0〜30.0 V rms

Accuracy: ±2.3% rdg ±8 dgt (50 Hz/60 Hz), ±1.3% rdg ±4 dgt (DC)

Allowable earth potential : 25.0 V rms (DC or sine wave)

Dustproof and waterproof : IP65/IP67 (EN60529)

Power supply : LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed)

Functions : Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator

Dimensions and mass : 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories)

GARANSI 3 TAHUN

HIOKI FT6031-50 DIGITAL EARTH TESTER GROUNDING TESTER MERGER TANAH IP67

HIOKI FT6031-50 DIGITAL EARTH TESTER GROUNDING TESTER MERGER TANAH IP67

Rp 5.350.000
