HIOKI CM3281

AC Digital Clamp Meter 2000 A

DESKRIPSI

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3281 is an average rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

FITUR :

+ 2000 A AC Current

+ 600 V AC/DC Voltage

+ Thin Jaw Easily Gets Through Crowded Wiring

+ Comes with a sturdy and lightweight hard case

+ Made in Japan

+ 3 Years Guarantee

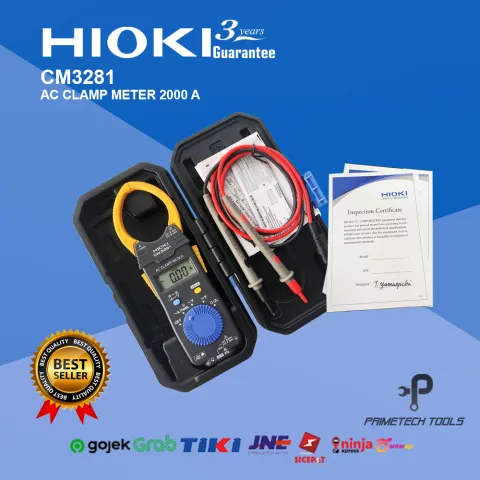

APA SAJA YANG TERMASUK DIDALAM PAKET ?

1 x HIOKI CM3281 Unit

1 x TEST LEAD L9208

1 x Instruction manual

1 x Download guide

1 x Operating precautions

1 x Inspection Certificate

SPESIFIKASI

Item Code : CM3281

AC Current range : 42.00 to 2000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy 50-60 Hz: ±1.5% rdg. ±5 dgt.

DC Voltage range : 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)

AC Voltage range : 4.200 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),

Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)

Resistance range : 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range)

Other functions : Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter

Power supply : Coin type lithium battery (CR2032) ×1, Continuous use 120 hours

Core jaw diameter : φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D

Dimensions and mass : 57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)

3 Years Warranty

Accuracy guaranteed: 1 year

HIOKI CM3281TANG AMPERE AC DIGITAL CLAMP METER 2000 A MADE IN JAPAN

HIOKI CM3281TANG AMPERE AC DIGITAL CLAMP METER 2000 A MADE IN JAPAN

Rp 1.500.000
