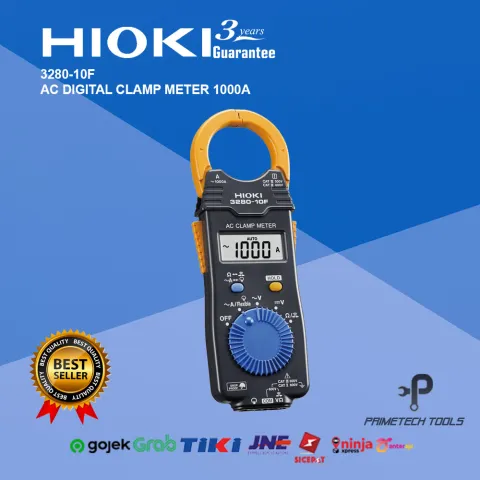

HIOKI 3280-10F DIGITAL CLAMP METER 1000 A MADE IN JAPAN

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current)

CAT III 600 V (Current)

CAT III 300 V (Voltage)

CAT II 600 V (Voltage)

Key Features

• Measure the fundamental waveform component using the average rectified method

• Expanded -25 °C to 65 °C operating temperature range

• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

• Drop proof design withstands drop from a height of 1 meter

SPECIFICATION

AC Current range 41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified),

Basic accuracy: ±1.5 % rdg. ±5 dgt.

DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.

AC Voltage range 4.199 V to 600 V, 4 ranges

(45 to 500 Hz, Average rectified),

Basic accuracy: ±1.8 % rdg. ±7 dgt.

Crest factor N/A

Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.

Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter

Display LCD, max. 4199 dgt., Display refresh rate: 400 ms

Environmental protection IP40 dustproof and waterproof

Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours

Core jaw dia. φ 33 mm (1.30 in)

Dimensions and mass 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)

Accessories CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1

Made In Japan

Guarantee 3 Years
