SPECIFICATION :

CHIPSET : INTEL B760

CPU SUPPORT : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA1700

MEMORY : 4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile

ONBOARD GRAPHICS 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

EXPANSION SLOT : 2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE : 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G

RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

USB : 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN : Realtek® 2.5Gbps LAN

WIRELESS / BLUETOOTH Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

AUDIO : Realtek® ALC897 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output

INTERNAL I/O : 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

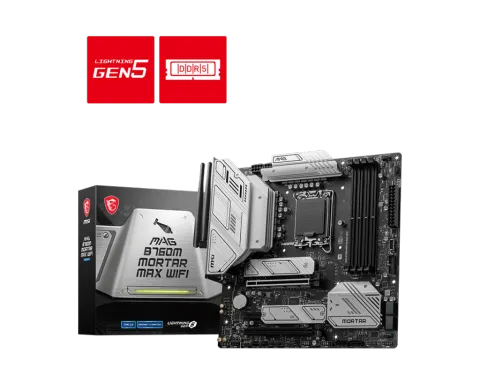

MSI Motherboard MAG B760M Mortar Max WiFi DDR5 LGA 1700

MSI Motherboard MAG B760M Mortar Max WiFi DDR5 LGA 1700

Rp 3.500.000
