Product Collection : Intel® Core™ i9 Processors (14th gen)

Code Name : Products formerly RAPTOR LAKE

Vertical Segment : Desktop

Processor Number i9-14900KF

CPU Specifications

Total Cores : 24

# of Performance-cores : 8

# of Efficient-cores : 16

Total Threads : 32

Max Turbo Frequency : 6 GHz

Intel® Thermal Velocity Boost Frequency : 6 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency : 5.8 GHz

Performance-core Max Turbo Frequency : 5.6 GHz

Efficient-core Max Turbo Frequency : 4.4 GHz

Performance-core Base Frequency : 3.2 GHz

Efficient-core Base Frequency : 2.4 GHz

Cache : 36 MB Intel® Smart Cache

Total L2 Cache : 32 MB

Processor Base Power : 125 W

Maximum Turbo Power : 253 W

Memory Specifications

Max Memory Size (dependent on memory type) : 192 GB

Memory Types

Up to DDR5 5600 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels : 2

Max Memory Bandwidth : 89.6 GB/s

Expansion Options

Direct Media Interface (DMI) Revision : 4.0

Max # of DMI Lanes : 8

Scalability : 1S Only

PCI Express Revision : 5.0 and 4.0

PCI Express Configurations : Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1700

Max CPU Configuration : 1

Thermal Solution Specification : PCG 2020A

TJUNCTION : 100°C

Package Size : 45.0 mm x 37.5 mm

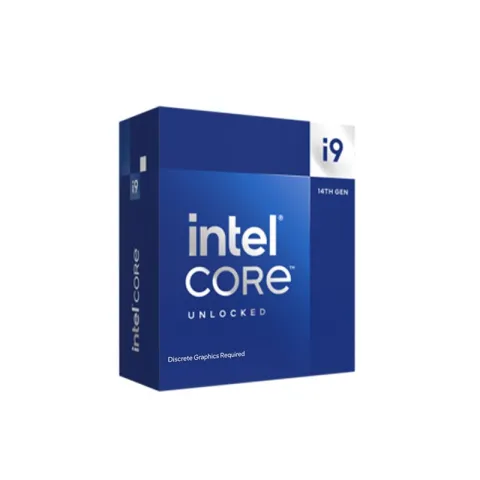

Intel® Core™ i9 processor 14900KF

Rp 9.700.000
