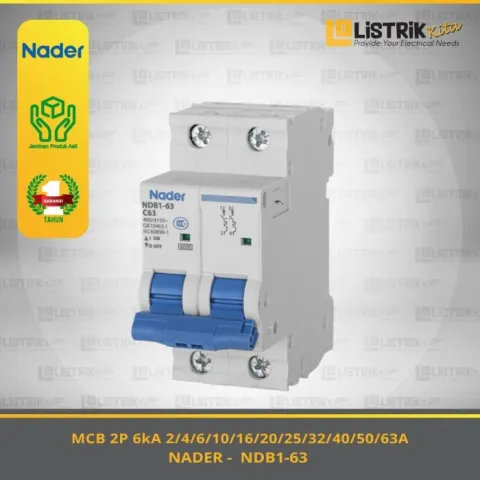

NADER MINIATURE CIRCUIT BREAKER (MCB) NDM1-63

2P 2A/4A/6A/10A/16A/20A/25A/32A/40A (6kA) 50A/63A (4.5kA) - NDM1-63C*/2

REFERENSI BARANG BERDASARKAN RATING AMPERE :

NDM1-63C2/2 : 2A

NDM1-63C4/2 : 4A

NDM1-63C6/2 : 6A

NDM1-63C10/2 : 10A

NDM1-63C16/2 : 16A

NDM1-63C20/2 : 20A

NDM1-63C25/2 : 25A

NDM1-63C32/2 : 32A

NDM1-63C40/2 : 40A

NDM1-63C50/2 : 50A

NDM1-63C63/2 : 63A

Main Technical Parameters :

Electrical parameters

Rated working voltage (Ue): AC230/240/400/415V1PAC400/415V(2P,3P,4P);DC80V

Rated current (In): 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Minimum operating voltage DC12V

Insulation voltage (Ui): 500V

Voltage Test Pulse (Uimp):6KV

Maximum breaking capacity (Icu):6KA, 4,5KA (50A & 63A)

Breaking capacity (Icn): 6 kA for C curve breaker (4.5 kA for 50A and 63A breaker)

Impulse voltage endurance: 4KV

Mechanical & electrical life: 10000 times

Wiring

Adopt tunnel type wiring

Connection capability: 1mm2 to 25 mm2

C curve

Illumination distribution system

Tripping characteristic: instantaneous trip between 5In to 10In

Working conditions

Ambient temperature: 35~70

Relative air humidity 95%

Altitude 2000m

Pollution degree: 2

Used in place without obvious shock and vibration

Dijamin :

* Bergaransi

* 100% Produk Asli

* Terpercaya

UNTUK INFORMASI LEBIH LANJUT :

* Via I-Commerce = www.listrikkita.com

* Via E-mail = cs@listrikkita.co.id

* Via Tlp = 021-22874107

* Via Whatsapp = 081281191598

*Orderan yang masuk sebelum jam 14.00 WIB akan diproses dihari yang sama Lewat dari itu, akan diproses dihari kerja selanjutnya. *Sabtu-Minggu dan Hari Libur Nasional kami Tutup.

MCB 2P 6kA NADER 2/4/6/10/16/20/25/32/40/50/63A SNI IEC60898

MCB 2P 6kA NADER 2/4/6/10/16/20/25/32/40/50/63A SNI IEC60898

Rp 88.800

Rp 161.616
