-Detection distance = 5mm ±10%

-Set Distance = 0 - 4mm

-Lag distance = Less than 10% of the detection distance

-Standard inspection object = Iron 18*18*1mm

-Response frequency = DC:0.5kHz AC:25Hz

- Voltage effect = Rated power supply voltage range within t15%, rated power supply voltage value within +10% detection distance

-Current consumption = N.P type: 13 mA or less, D type: 0.8 mA or less, A type: 1.7 mA or less

-Control Output = N.P type: 300 mA or less, D type: 200 mA or less, A type: 400 mA or less N.P.D

-Loop Protection = N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption

-Ambient temperature and humidity = During operation, when saving: each -30-+65 °C (no ice, no frost), during operation, when stored: each 35-95% RH

-Temperature effect = Temperature range -30-+65C, +23°C, t1 5% detection distance Temperature range -25 -+60 ° C, +23 ° C, + 10% detection distance

-Insulation resistance = 50MQ or more (DC500 megohmmeter) between the charging part and the outer casing

-Material = Housing =Brass nickel plated Detection surface: ABS

-Protective structure = IP67 (EC specification)

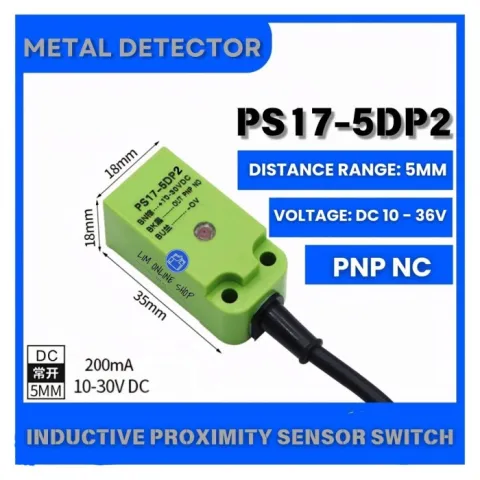

PROXIMITY SENSOR PS17-5DP2 PNP NC NORMALY CLOSE DC12-24V 3 WIRE

Rp 65.000
