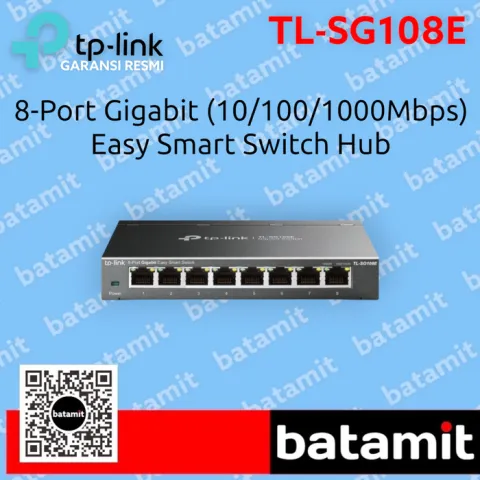

8-Port Gigabit Easy Smart Switch

8 10/100/1000Mbps RJ45 ports

Plug and play, with no configuration required

Durable metal casing of superior quality and professional appearance

Intelligent management via a web user interface and downloadable utility

Green technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface 8 10/100/1000 Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A)

Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption 3.68 W (220 V/ 50 Hz)

Max Heat Dissipation 12.55 BTU/h

PERFORMANCE

Switching Capacity 16 Gbps

Packet Forwarding Rate 11.9 Mpps

MAC Address Table 4 K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Quality of Service Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG108E

Power Adapter

Installation Guide

Rubber Feet

System Requirements Microsoft® Windows® for running Utility

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch TPLINK SG108E

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch TPLINK SG108E

Rp 435.000
