Deskripsi Produk

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface 5 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity Fanless

Power Supply 100-240VAC, 50/60Hz

Dimensions (W X D X H) 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)

PERFORMANCE

Packet Forwarding Rate 7.4Mpps

MAC Address Table 2K

Packet Buffer Memory 1.5Mb

Jumbo Frame 15KB

SOFTWARE FEATURES

Quality of Service Support Port-based/802.1p/DSCP priority 2

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping

Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

Package Contents

TL-SG105E

Power Adapter

Installation Guide

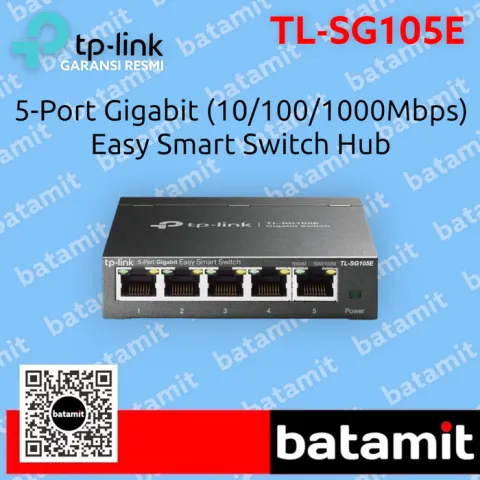

TP-LINK TL-SG105E 5-Port Gigabit Easy Smart Switch TPLINK SG105E

Rp 350.000
