Ruijie RG-E-120(GE) Power Injector delivers the following features:

• Up to 15.4W of Power

• Compatible with all IEEE 802.3af standards

• Safe: Low Power Devices Receive Only the Power They Need

• Safe and Reliable Power to WLAN Access Points

• Automatic Detection and Protection of Non–standard Ethernet Terminals

• Supports 10/100/1000Base-T Applications

• Compact Design Fits Easily in WLAN Access Point Installations

RG-E-120(GE)

Ports

10/100/1000 Mbps Copper port (RJ-45)

10/100/1000 Mbps PoE Copper port (RJ-45)

Power

Output Power Voltage: 50V DC

Output Port Power: 15.4W

Dimensions

(W x H x L) (mm)

53 x 32.5 x 140

Weight

200g

Temperature

Operating Temperature: 0°C to 45°C

Storage Temperature: -30°C to 85°C

Humidity

Operating Humidity: 5% to 90% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Altitude

Operating Altitude: 0 to 3048m

Regulatory Compliance

IEEE 802.3af RoHS Compliant, WEEE Compliant, CE

MTBF

>100,000 hours @25°C

Electromagnetic Emission & Immunity Safety Approval

FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1

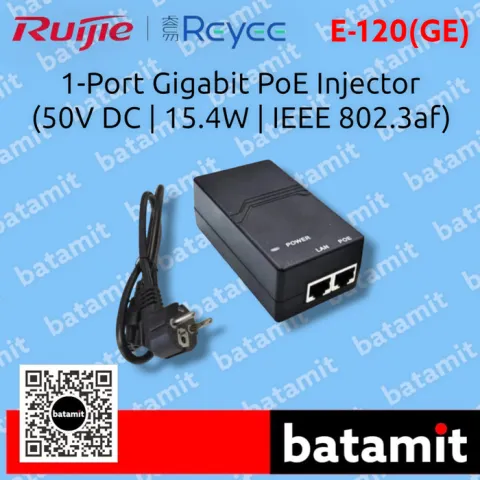

Ruijie Reyee RG-E-120(GE) Power Over Ethernet Adaptor POE RG-E-120 GE

Rp 316.000
