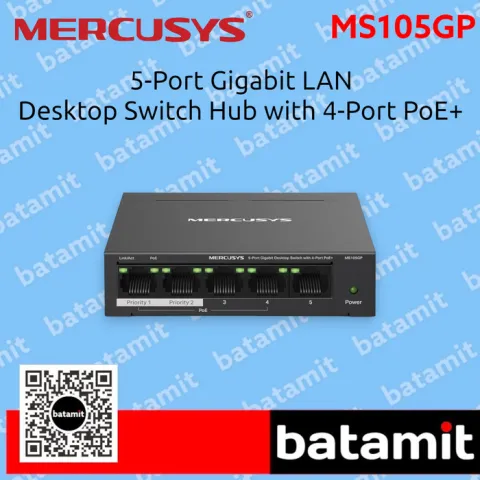

MS105GP

5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports

Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Plug and Play: Simple to use and saves time and effort

Dimensions 99.8*98*25mm

PoE Ports:

RJ45

Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 4

PoE Power Budget: 65 W

Interfaces

5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex

20/200/2000 Mbps at Full Duplex

Jumbo Frame 9 KB

Mac Address Table 2K

Max Power Consumption

3.13W（220 V / 50 Hz, no PD connected）

75.15W（220 V / 50 Hz, with 65W PD connected）

Max Heat Dissipation

10.64 BTH/h （no PD connected)

255.51 BTH/h（with 65W PD connected）

Package Contents

• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)

• Power Adapter

• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing

MERCUSYS MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Rp 435.000
