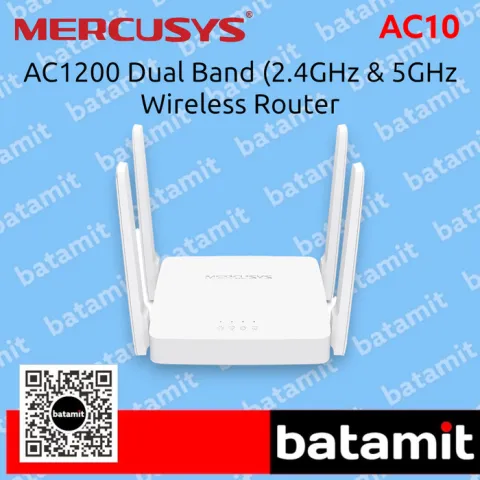

MERCUSYS AC10 AC1200 Dual Band Wireless Router

WirelessWireless Standards

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz, 5 GHz

WiFi Speeds

Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz

Reception Sensitivity

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT40 MCS7: -74dBm

11n HT20 MCS7: -71dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8: -74dBm

11ac VHT40 MCS9: -70dBm

11ac VHT80 MCS9: -65dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WEP

WPA / WPA2-Personal

WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

SoftwareOperation Modes

Router Mode, Access Point Mode

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control, Local Management, Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

HardwareDimensions

4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

Interfaces

1× 10/100 Mbps WAN Port

2× 10/100 Mbps LAN Ports

Button

Reset/WPS Button

External Power Supply

9V/0.85A

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

MERCUSYS AC10 AC1200 Dual Band WiFi Wireless Router Multi-Mode AC-10

MERCUSYS AC10 AC1200 Dual Band WiFi Wireless Router Multi-Mode AC-10

Rp 248.000
