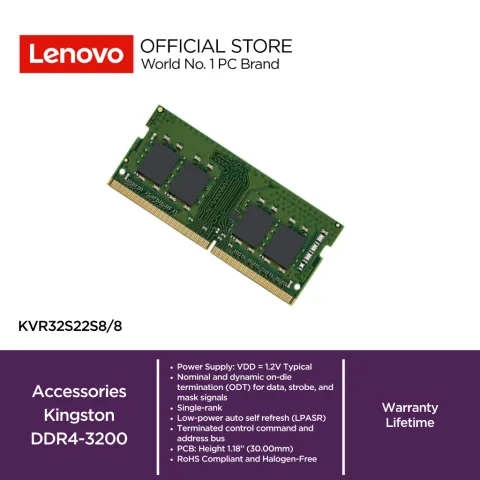

Kingston RAM 8GB 3200MHz DDR4 Non-ECC CL22 SODIMM 1Rx8 KVR32S22S8/8

DESCRIPTION

This document describes ValueRAM's KVR32S22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),

1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical & mechanical specifications are as follows:

SPECIFICATIONS

CL (IDD): 22 cycles

Row Cycle Time (tRCmin): 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V - 0

Operating Temperature: 0° C to +85° C

Storage Temperature: -55° C to +100° C

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• Nominal & dynamic on-die termination (ODT) for

data, strobe, & mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation & calibration

• Single-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 & burst length (BL) of 8

via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command & address bus

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant & Halogen-Free

• Garansi Lifetime
