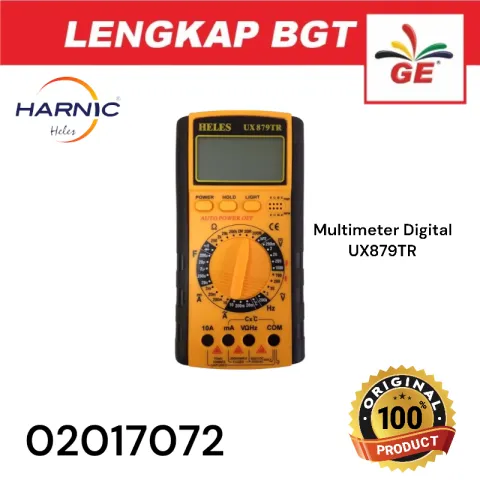

Digital Multitester + Temperature & Frequency Tester Heles UX-879TR

General Specification :

- Max Indication : 1999 counts (3 1/2 digits) with large LCD display

- Sampling rate : 2-3 times reading per second (approximate)

- Push-type Switch buttons respectively for data

- Hold-on(HOLD), LCD Back Lightning and Power On/Off

- Auto Power Off after 15 minutes if no working

- Single 32 range positions easy to use rotary switch for more 10 functions and measuring range selection

- High sensitivity of 100 uV

- Impedance : 10M Ohm on all DCV & ACV Range.

- Automatic over-range indication with "1" displayed

- Automatic low battery power (6,4V) indication with the mark of battery shape

- Automatic polarity indication on DC Range

- Diode testing with 1 mA fixed current

- Transistor hFE Test with ib- 10 uA

- Continuity test by beeper sounding below 50 Ohm

- Maximum common mode voltage : 500 V DC/AC rms

Operating temperature : 0 - 40 Celcius

Storage temperature : -10 - 50 Celcius

Power Supply : 9 Volt Battery

Size : 175 x 82 x 40 mm

Weight : 300 Gram

Accesories :

- Operating Manual

- 1 Set of Test Leads 1000V/10A Class PVC Wire

- 1 Set of K Type Thermal Probe for temperature testing

Measurement range :

- DC Voltage : 200mV, 2V, 20V, 200V, 1000V

- AC Voltage : 2V, 20V, 200V, 700V

- DC Current : 2mA, 200mA, 10A

- AC Current : 2mA, 200mA, 10A

- Resistance : 200Ohm, 2kOhm, 20kOhm, 200kOhm, 2MOhm, 20MOhm, 200MOhm

- Capacitance : 20nF, 200nF, 2uF, 200uF

- Temperature : 40 - 400 C, 400 - 1000C

- Frequency : 200 K Hz

MULTITESTER Multimeter DIGITAL HELES UX 879 TR Buzzer - 02017072

Rp 458.000
