Specifications

Fiber alignment : Core/cladding

Motor number : 6 motors（accurate of fiber alignment：0.3μm）

Splicing time : 8s

Heating mode : 18s， can be customized according to the external environment

Fiber type : Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;

The cladding diameter : 80-150 μm

Splicing loss : 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS)

Splicing mode : Automatic focusing core alignment, conventional/high precision welding

Splicing way : Automatic, semi-automatic

Fiber holder : Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable

VFL : The machine comes with: power: 15mW, 2Hz flashing and steady on mode

OPM : Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、 1650nm/Measurement range: -50+26dbm Absolute error:

Battery capacity : 5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores

Machine system languages : 10 languages available（Chinese、English、French、Russian、Italian、Portuguese、Polish、Spanish、 Thai、Arabic）

Magnification : 320x (X or Y axis single display) ，200x (x and Y axis dual display)

Fiber diameter : Coating diameter: 80-150μm/Coating diameter: 100-1000μm

Cutting length : Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm

Heat shrink tube : 60mm、50mm、40mm、25mm

Tensile testing : standard 2N

Display : 5 inch TFT color display screen

Boot time : 1s, boot can enter the working mode

Data is stored : Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.

Wireless communication : Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m

Software upgrade : Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

Management function : The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectivelymanage a single or multiple equipment.

Return loss : Better than 60 dB

Product protection : Waterproof, dustproof and fall proof

Power supply : Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, realtime monitoring of the current battery level

The work environment : Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s

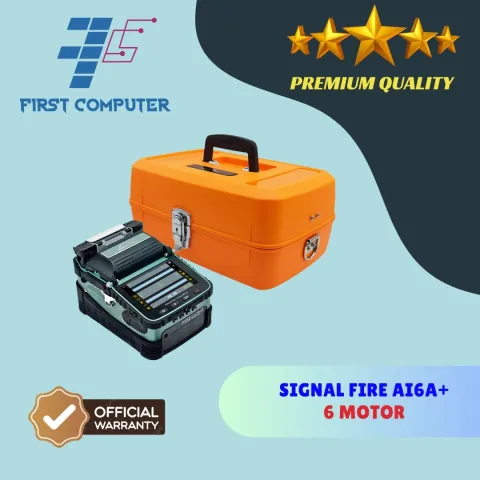

Signal Fire Ai-6A+ Fusion Splicer Fiber 6 Motor Ai6A+

Signal Fire Ai-6A+ Fusion Splicer Fiber 6 Motor Ai6A+

Rp 7.600.000

Deskripsi
