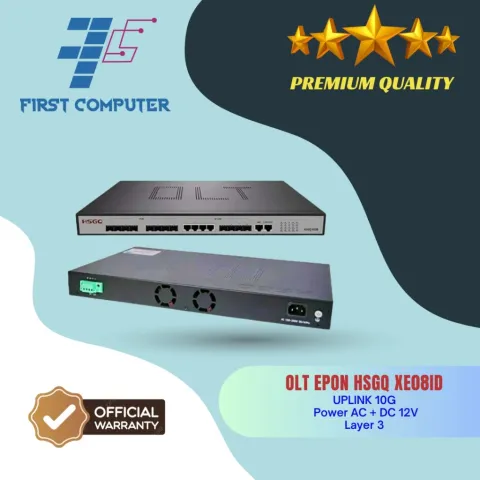

OLT HSGQ EPON XE08ID L3 8PON UPLINK SFP+ PX20+++ AC+DC

DDR 512M

FLASH 16M

Size (L*W*H)

Product size:442mm260mm44mm

Package size:520mm372mm87mm

Weight <5kg

Uplink

QTY 8

Copper

4*10/100/1000Mauto-negotiable,RJ45

SFP 4 1G/10G SFP

PON QTY 8

PhysicalInterface

8 SFP slots

Connector Type

1000BASE-PX20+/PX20++/PX20+++

Max splitting ratio 1:64

Management Ports

CONSOLE port/NMS PORT

Power Input

AC: 100V240V AC 47/63Hz

Support standard

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z1000BASE-X

IEEE802.3ab1000Base-T

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.1x(Port Control)

IEEE802.3xflow-control

Each OLT interface supports at most 64 ONU

Transmission distance of each OLT is at most 20Km

PON function

Support auto register and confirm

Blacklist and whitelist onu

DBA configure

P2P

ONU authorization

Layer 2/3 function

VLAN,QinQ,link convergency, broadcast strom control

Support at most 4094 VLAN;performance statistic

16K MAC address;mac address management

Port mirror / Static Trunk

Support RSTP

Storm control

Support IGMP Snooping/proxy

Support 512 router hosts

Support 64 router subnets

Limit quantity of maximum user at each port

Port isolation

Packe storm control

ACL access control based on data stream

QoS based on port, VID, TOS and MAC address;

Encrytion of PON port transmitting data

Support 802.1X authentication

Configuration and Management

SNMP/NMS

WebGUI management

CLI, SNMP, TELNET,cluster etc.

SSHv1/v2

Software and bootrom upgrade by TFTP and FTP

Local server syslog to record system log

Chinese/English command prompt

Ping and traceroute

Debug/Log management

User management;

Alarm management.

Lightning

Service port has lightning protection

Maintenance

Telnet remote maintenance

Temperature

-1060

Humidity

5%95%
