Sertifikasi POSTEL : 100280/SDPPI/2024

Specification

1310(RX) /1490(TX)

Optical power : +2.5 ~ +7dBm

Receiving sensitivity : -27dBm

Max distance : 20km

Max splitter ratio : 1:64

Capacity : 8 SFP PON, each PON supports max 64pcs ONU, total 512pcs ONU

MAC : 16k

Uplink port : 4 SFP ports + 4 Combo(SFP/TP) ports

PON port : 8 SFP 1000M fiber ports

Control port : 1 10/100/1000M RJ45 port; 1 Console(RJ45), to debug the device; 1 USB port

MTBF : 100,000 hours

EPON traits : Support IEEE802.3ah; Support DBA with minimum1Kbps granularity adjustable; Support 1Gbps up link and down link symmetrical bandwidth; Support AES-128 encryption to each Logical Link Identifier; Support powerful OAM function, implement telnet management, maintenance and upgrade; Support auto discovery and auto register of ONU (real-time operation)

Protocols supported : Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z ; Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree; Support IEEE 802.1P QoS、IEEE802.3X Flow Control; Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management : Support GUI management based on SNMP ; Support WEB management and Telnet GUI management based on CLI

Other functions : Support 1GMPv1/v2 protocol report, query and leave message mouse ; Support DHCP Snooping

Support Ipv4 address learning based at DHCP Snooping ; Support ARP Snooping, QoS etc

8PORTS EPON OLT, with 4 1000M Combo + 4 1000M SFP uplink, 1 NMS port,

1U Rackmount AC 100 - 240V

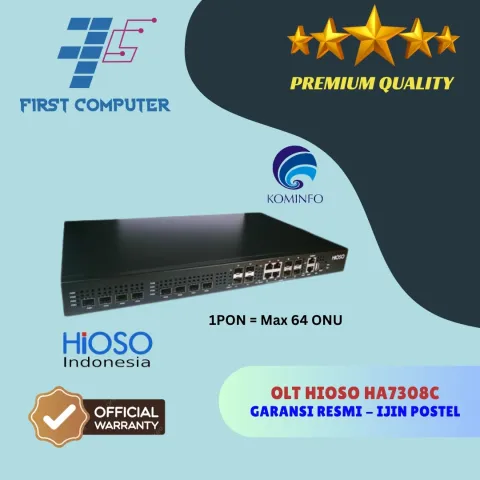

OLT Epon HIOSO HA7308C Garansi Resmi POSTEL

OLT Epon HIOSO HA7308C Garansi Resmi POSTEL

Rp 6.750.000

Deskripsi
