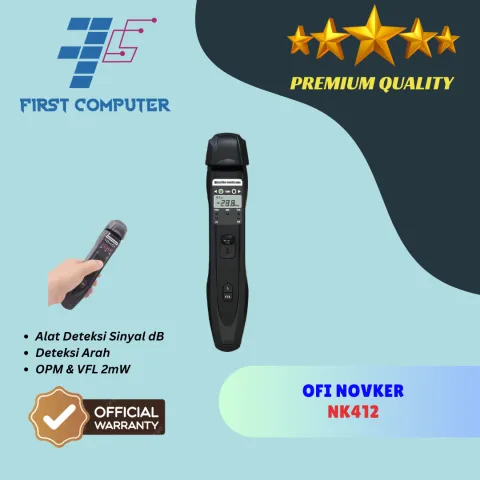

NK412 Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function. Useing the macro bending technology on line for nondestructive testing, NK412 can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

Features for NK412 fiber optic tools Optical Fiber Identifier

* Indicate the signal directions and power in fiber

* Indicate the signal presence or absence(Live or dark fiber)

* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning

* Displays the relative core power

* Don't need to replace adaptor

* Lower power indication

* Build in OPM & VFL function

Specificationfor NK412 fiber optic tools Optical Fiber Identifier

Model：NK412

Identified Wavelength：800nm-1700nm

Insertion Loss：0.8dB,2.5dB

Fiber Type : > 3mm Fiber

Identified Signal Type：270Hz/1KHz/2KHz

Display Type：LED

Detector Type：InGaAs

Center Wavelength：650nm

Output Power：>2mW

OPM : -50 dbm ~ +26dbm

Alkaline Battery：9V

Battery Life : >10H

Operating Temperature：-10~+50℃

Storage Temperature：-40~+70℃

Weight：200g

Dimension：220*48*40mm

Includes：

NK412 Optical Fiber Identifier, User Manual, Battery
