Specifications

Model : CS-H7c-R100-8G44WF

Camera

Resolution : Dual 2K+ Resolution (4MP)

Image Sensor : 1/3" Progressive Scan CMOS

Shutter Speed : Self-adaptive shutter

Fixed Lens : 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)

PT Lens : 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)

Lens Mount : M12

Day & Night : IR-cut filter with auto-switching

DNR : 3D DNR

WDR : Digital WDR

Compression

Video Compression : H.264/H.265

Video Bit Rate : Adaptive bit rate.

Network

Smart Alarm : Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing : AP paring

Protocol : EZVIZ cloud proprietary protocol

Interface Protocol : EZVIZ cloud proprietary protocol

Image :

Max. Resolution : 2560 × 1440

Frame Rate : Max:30fps; Self-Adaptive during network transmission

Interface

Storage : Micro SD card slot (Max. 512G)

Power : TYPE-C

Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi :

Standard IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax

Frequency Range 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz

Channel Bandwidth 2.4GHz Supports 20MHz 5GHz Supports 80MHz

Security WPA-PSK, WPA2-PSK, WPA3-Personal

General :

Operating Conditions : -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)

Power Consumption : 8W max

Power Supply : DC 5V/2A

IR Range : MAX. 10 meters (32.81ft)

Dimensions : 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)

Package Dimensions : 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in)

Net Weight : 270 g (9.52 oz)

Bare Weight : 499 g (17.60 oz)

In the box

- Camera (x1)

- Power Adapter (x1)

- Power Cable (x1)

- Drill Template (x1)

- Mounting Plate (x1)

- Screw Kit (x1)

- Regulatory Information (x1)

- Quick Start Guide (x1)

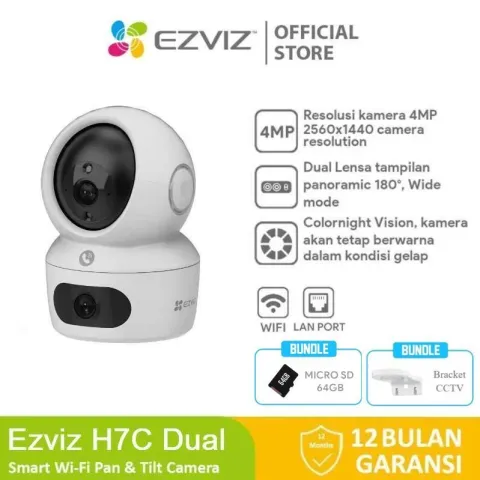

Kamera CCTV Ezviz H7C 4MP + 4MP Dual Lensa Smart Wifi Camera Two Way Talk Pant-Tilt

Kamera CCTV Ezviz H7C 4MP + 4MP Dual Lensa Smart Wifi Camera Two Way Talk Pant-Tilt

Rp 865.000

Rp 1.195.000

Deskripsi
