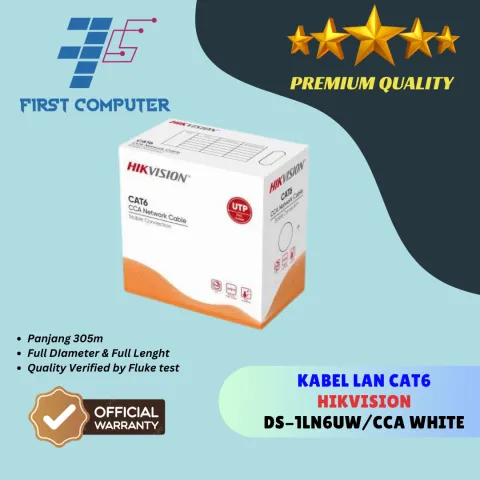

Hikvision Kabel UTP CAT 6 DS-1LN6U-W/CCA

Warna Putih

CAT6 UTP Network Cable (CCA,0.565 mm)

Cost-effective CAT6 CCA network cable

Full diameter and full length

Quality verified by Fluke test

Guaranteed long PoE transmission distance

General

Core Color

1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,

Packing

Rip-Cord : Yes

Drain Wire : No

Sheath Physical Properties

Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

Electrical Characteristics (20℃)

1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,

Conductor Material

CCA（Copper content：27%）

Nom.O.D.(Mm)

0.585±0.01

Insulation Material

Solid HDPE

Diameter

1.05±0.05mm

Kabel LAN Hikvision UTP Cat 6 DS-1LN6U-W/CCA Cat6 White

Kabel LAN Hikvision UTP Cat 6 DS-1LN6U-W/CCA Cat6 White

Rp 1.060.000
