Camera

Image Sensor 1/3" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

Compression

Video Compression H.264

Video Bit Rate Full HD, HD, Standard. Adaptive bit rate.


Max. Resolution 1920 × 1080

Frame Rate Max:15fps; Self-Adaptive during network transmission

Network

Smart Alarm Motion detection

Wi-Fi Pairing AP pairing

Protocol EZVIZ Cloud proprietary protocol

Interface Protocol EZVIZ Cloud proprietary protocol

Interface

Storage MicroSD card slot (Max. 256GB)

Power Micro USB

Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard IEEE802.11b/g/n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20MHz

Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps

Operating Environment

Temperature -10°C to 45°C (14°F to 113 °F)

Humidity 95% or less (non-condensing)

General

Power Supply DC 5V/1A

Power Consumption 5W max

IR Range MAX. 10 meters (32.81 ft.)

Dimensions 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)

Packaging Dimensions 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)

Net Weight 259g (9.14oz)

In the box:

In the box: TY1 Pan/Tilt Camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template ; Power Adapter ; Quick Start Guide

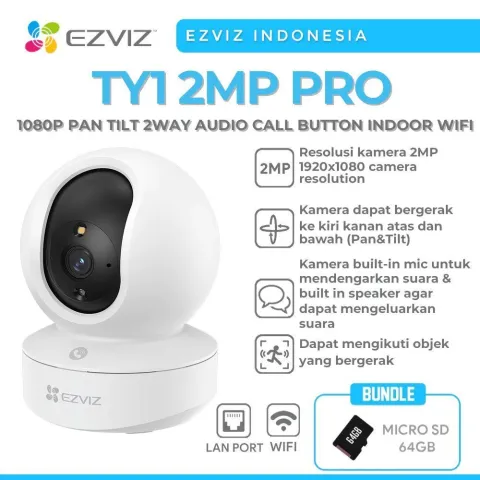

Ezviz TY1 PRO 2MP Smart Wifi Pan Tilt IP Camera CCTV Indoor 1080p

Rp 380.000
