Specifications

Model : CS-H6c-R105-1J5WF

Camera

Resolution: 3K Resolution

Image Sensor: 1/2.7" Progressive Scan CMOS

Shutter Speed : Self-adaptive shutter

Lens: 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.264/H.265

Video Bit Rate : Adaptive bit rate.


Max. Resolution: 2880 × 1620

Frame Rate: Self-Adaptive during network transmission

Network

Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing: AP paring

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Interface

Storage: Micro SD card slot (Max. 512G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n

Frequency Range: 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz

Channel Bandwidth: Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7

Output Power(EIRP): 19 dBm

Antenna Gain: 1.9 dBi

General

Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/2A

Power Consumption: 8W max

IR Range: MAX. 10 meters(32.81ft)

Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight: 213 g (0.47 lb)

In the box

- Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- EZVIZ Screw Kit

- Regulatory Information

- Quick Start Guide

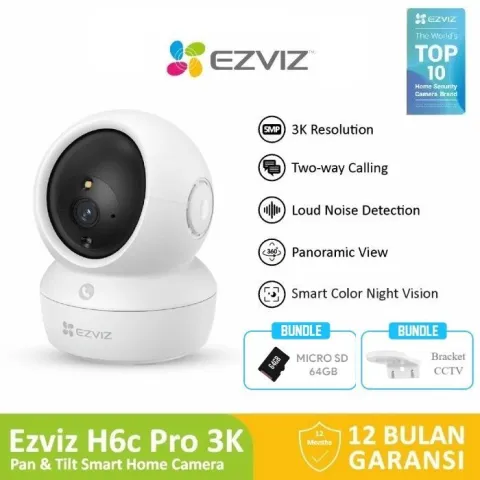

Ezviz H6c Pro 3K 5MP Smart Security Wifi Pan Tilt IP Camera CCTV Indoor

Ezviz H6c Pro 3K 5MP Smart Security Wifi Pan Tilt IP Camera CCTV Indoor

Rp 555.000

Rp 885.000

Deskripsi
