Specifications

Model : CS-H6c-R105-1L3WF

Camera

Image Sensor :1/2.7" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4mm @ F1.6, viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.264/H.265

Video Bit Rate: Adaptive bit rate.


Max. Resolution: 2304 × 1296

Frame Rate: Self-Adaptive during network transmission

Network

Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection

Wi-Fi Pairing: AP paring

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Interface

Storage: Supports microSD card (Up to 512 G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power(EIRP): 19 dBm

Antenna Gain: 1.9 dBi

General

Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/1A

Power Consumption: 5W max

IR Range: MAX. 10 meters (33ft)

Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight: 218g (0.48lb)

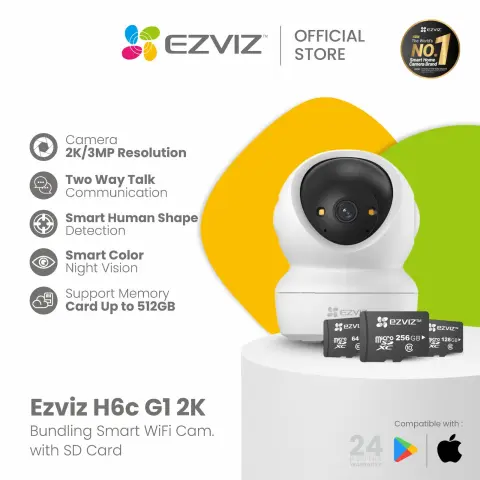

Ezviz H6c G1 2K 3MP Smart Wifi Pan Tilt IP Camera CCTV Indoor

Rp 499.000
