#Belum termasuk Harddisk (HDD)

Model = CS-X5S-R100-8W

Specifications:

IPC Access Capability

• Wireless/Wired IPC Access Capability = 3K *8

• Wired IPC Access Capability = 3K *8 (X5S-8W)

Network Parameters

• Antenna Number = 2

• Max Wireless Range = 100m

• Radio Frequency = 2.4G

• Ethernet Port = One 10/100M adaptable Ethernet interface

• Required Access Bandwidth = 50 Mbps/100 Mbps

Video Output

• VGA = 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz

• HDMI = 1 channel resolution up to 2592*1944/30HZ

Audio/Video Codec

• Recording Resolution = 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

• Video Encoding = H.265, H.264

• Decode Playback = Supports 8*3K

Video Recording Management

• Video Recording Mode = Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording

• Backup Mode = Hard disk backup, Internet application backup

• Playback Mode = Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback

Open Protocol

• Open Protocol Support = HIKVISION, ONVIF (V.2.5)

HDD

• Interface Type = One built-in SATA port

• Capability = Supports 1TB to 8TB 3.5-inch HDD

External Interface

• Audio Input/ Output = Not support

• Hardware Reset = Supports

• USB2.0 Interface = 2

Dimensions

• Product Dimensions = 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

• Packaging Dimensions = 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

• Power Supply = DC 12V/1.5A

• Consumption = Standby status ≤8W

• Net Weight = 932 g

In the box

• X5S NVR × 1

• Power Adapter × 1

• Mouse × 1

• Screw Kit × 1

• Regulatory Information × 2

• Quick Start Guide × 1

Certifications

• CE / UL / RoHS / WEEE / REACH

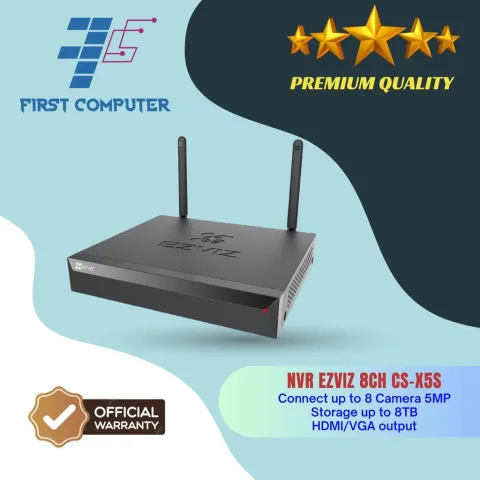

EZVIZ X5S-8W Wireless NVR 8 Channel Up to 5MP / 3K Support ONVIF

EZVIZ X5S-8W Wireless NVR 8 Channel Up to 5MP / 3K Support ONVIF

Rp 1.020.000
