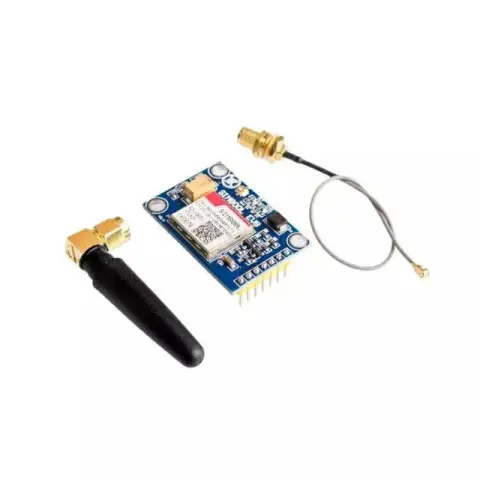

SIM800L V.2 V2 5V GSM GPRS with Antenna Modul sim 800L V2 800 L V2 GSM

sim800v2 dengan Antena PCB

Versi 2 Power Supply : 5V DC

General features

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class 12/10

GPRS mobile station class B

Compliant to GSM phase 2/2+

- Class 4 (2 W @ 850/900MHz)

- Class 1 (1 W @ 1800/1900MHz)

Bluetooth: Compliant with 3.0+EDR

FM: 76~109MHz worldwide bands with 50 KHz tuning step

Dimensions: 15.8*17.8*2.4mm

Weight: 1.35g

Control via AT commands (3GPP TS 27.007, 27.005 And SIMCOM enhanced AT Commands)

Supply voltage range 3.4 ~ 4.4V

Low power consumption

Operation temperature:-40 ~85

Specifications for GPRS Data

GPRS class 12: Max. 85.6 kbps (downlink/uplink)

PBCCH support

Coding schemes CS 1, 2, 3, 4

PPP-stack

CSD up to 14.4 kbps

USSD

Non transparent mode

Specifications for SMS via GSM/GPRS

Point to point MO and MT

SMS cell broadcast

Text and PDU mode

Software features

0710 MUX protocol

Embedded TCP/UDP protocol

FTP/HTTP

MMS

E-MAIL

DTMF

Jamming Detection

Audio Record

TTS

Embedded AT (optional)

Specifications for voice

Triode

- Half rate (HR)

- Full rate (FR)

- Enhanced Full rate (EFR)

AMR

- Half rate (HR)

- Full rate (FR)

Hands-free operation

Echo suppression

Interfaces

88 LGA pads including:

Analog audio interface

RTC backup

Serial interface

Interface to external SIM 3V/1.8V

GSM Antenna pad

FM Antenna pad

Bluetooth Antenna pad

Compatibility

AT cellular command interface Certifications (Plan):

GCF

FCC

ROHS

REACH

The module Basic features

51 STM32 AVR MCU compatible

Prototype expand

The frequency is 850/900/ 1800/1900 MHz

Power supply range: voltage is 4.6-5.2v; current is 1A or more
