Spesifikasi Modul Penerima / RF Receiver:

Catu daya: 5 Volt DC

Arus pada moda statis / quiescent current: 4 mA

Frekuensi operasional: 433,92 MHz

Lebar pita frekuensi / bandwidth: 2 MHz

Moda modulasi: OOK / ASK

Sensitivitas: -105 dB

Spesifikasi Modul Pengirim / RF Transmitter:

Catu daya: 3-12 Volt DC

Arus pada saat mengirimkan sinyal: 20-28 mA

Frekuensi operasional: 433,92 MHz 150kHz

Kekuatan transmisi: 40 mW (16 dBm) pada tegangan 12V

dapat mencapai hingga 90 meter pada kondisi tanpa halangan

Moda modulasi: ASK

Moda resonansi: SAW

Rentang suhu operasional: -10 ~ +70

Ukuran: 19 19 8mm

Spesifikasi Modul Transmitternya:

Working voltage: 3V12V

Working current: max40mA (12V), min9mA(3V)

Resonance mode: sound wave resonance (SAW)

Modulation mode: ASK /OOK

Visit Tokoduino dot com

Working frequency: 315MHz-433.92MHz, customized frequency is available.

Transmission power: 25mW (315MHz at 12V)

Frequency error: +150kHz (max)

Velocity: 10Kbps

Self-owned codes: negative

Spesifikasi Modul Receivernya:

Working voltage: 5.0VDC +0.5V

Working current:5.5mA (5.0VDC)

Working principle: single chip superregeneration receiving

Working method: OOK/ASK

Visit Tokoduino dot com

Working frequency: 315MHz-433.92MHz, customized frequency is available.

Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)

Sensitivity: excel 100dBm (50)

Transmitting velocity: 9 .6Kbps (at 315MHz and -95dBm)

Kelengkapan:

1pcs module Transmitter 433MHz

1pcs module Receiver 433Mhz

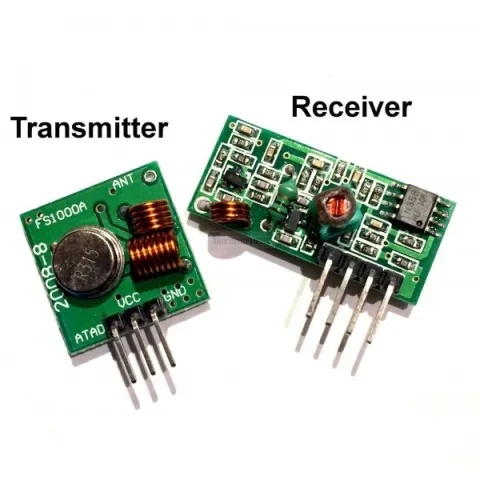

RF Module Board 433 MHz Transmitter and Receiver RF 433 MHz Transmitter-receiver Module for Arduino

Rp 24.500
