Built-in 12dBi 2x2 dual-polarized directional MIMO antenna

- Adjustable transmission power from 0 to 30dBm/1000mw

- System-level optimizations for more than 13km long range wireless transmission

- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

- Centralized Management System Pharos Control

- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

- Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc

- Memory : 64MB DDR2 RAM, 8MB Flash

- Interface : 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button

- Power Supply : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC

- Power Consumption : 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

- Antenna Type : Built-in 12dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 60 (H-Plane) / 30 (E-Plane), Note: For more details, please refer to datasheet

- Protection : 15KV ESD Protection, 6KV Lightning Protection

- Enclosure : Outdoor ASA stabilized plastic material, IPX5 waterproof Certification

- Wireless Standards : IEEE 802.11b/g/n (with Pharos MAXtream disabled)

- Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)

- Wireless Speeds : Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)

- Outdoor Wireless CPE, 24V 1A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide

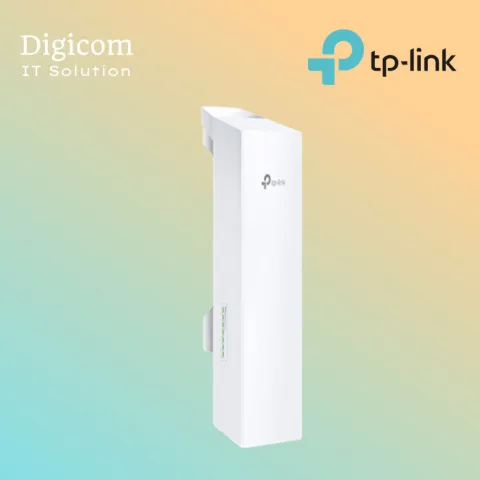

TPLink CPE220 TP-Link N300Mbps 12dBi AP Outdoor CPE 2,4ghz

TPLink CPE220 TP-Link N300Mbps 12dBi AP Outdoor CPE 2,4ghz

Rp 535.000

Deskripsi
