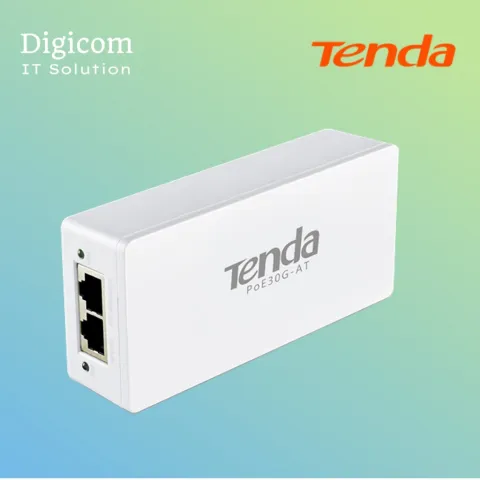

The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully

conforms to the standard of wtih 802.3, transmitting power through Ethernet

cable, the maximum transmission distance can reach 100 meters. The PoE injector

has two Ethernet gigabit data ports and an output port combination of data and

power. In addition, the device can be used for Ethernet device IEEE802.3af/

compatible PoE power applications such as wireless AP, VoIP phone and web CAM.

The power supply of Ethernet cable not only provides system reliability,

traditional power grid expansion, but also simplifies the deployment of power

lines.

DescriptionPoE Injector

Standard&ProtocolCompatible with IEEE802.3, IEEE802.3u, IEEE802.3ab,

IEEE802.3af , IEEE802.3atStandard

CSMA/CD, TCP/IP

FeaturesSupport the powered devices compatible with IEEE802.3af、IEEE802.3at

Standard

Transmission range up to 100M

Plug and play

Port1 GE port

1 data&power output port supporting PoE

IndicatorPWR, PoE

Dimension131mm*60mm*33mm

Power Output30W

Operation Temperature0℃~40℃

Storage Temperature-40℃~70℃

Operating Humidity10%~90% (noncondensing)

Storage Humidity5%~90% (noncondensing)

CertificationCE\FCC\ROHS

TENDA POE30G-AT POE INJECTOR GIGABYTE

Rp 210.000
