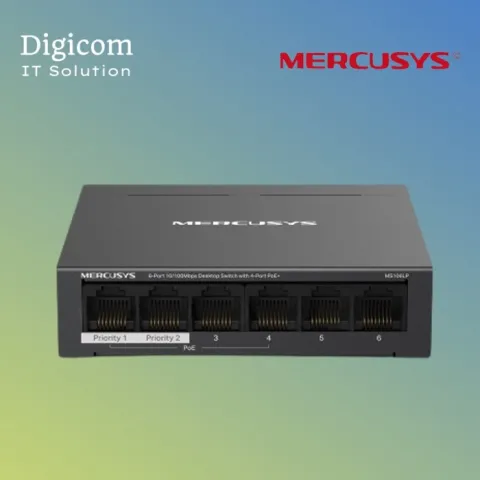

MS106LP

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

- 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*

- 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

- Isolation Mode: One click to divide traffic for specific ports for stability and security

- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

- Durable Metal Casing: Allows for efficient heat dissipation and long network life

- Plug and Play: Simple to use and saves time and effort

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Specification

Hardware

Dimensions

- 99.8*98*25mm

PoE Ports

- RJ45

- Standard: Compliant with 802.3 af/at Powered Devices

- PoE Ports: Port 1- Port 4

- PoE Power Budget: 40 W

Interfaces

- 6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

- External Power Adapter (Output: 53.5V/0.81A)

Installation

- Desktop

- Wall Mount

Standards and Protocols

- IEEE 802.3x Flow Control

Data Rates

- 10/100 Mbps at Half Duplex

- 20/200 Mbps at Full Duplex

Jumbo Frame

- 2 KB

Mac Address Table

- 2K

Max Power Consumption

- 1.87W(220 V / 50 Hz, no PD connected)

- 44.8W(220 V / 50 Hz, with 40W PD connected)

Max Heat Dissipation

- 6.34 BTH/h (no PD connected)

- 152.32 BTH/h(with 40W PD connected)

Others

Package Contents

- • 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)

- • Power Adapter

- • Quick Installation Guide

Environment

- Operating Temperature: 0?~40? (32?~104?)

- Storage Temperature: -40?~70? (-40?~158?)

- Operating Humidity: 10%~90% RH non-condensing

- Storage Humidity: 5%~95% RH non-condensing

SWITCH MERCUSYS MS106LP 6PORT+POE

SWITCH MERCUSYS MS106LP 6PORT+POE

Rp 280.000
