Spec :

Chipset

AMD B550

CPU SUPPORT

Supports AMD 3rd Gen Ryzen (Matisse) Processors / Future Ryzen Processors

Support for future AMD Ryzen processors with BIOS update

MEMORY

Supports Dual Channel DDR4 1866/2133/2400/2667/2933

Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 4000(OC)/ 4400+(OC)

2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

*DDR4- 2667 only for Ryzen CPU

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

4 x SATA III Connectors (6Gb/s): Supports AHCI & RAID 0, 1, 10

1 x M.2 (M Key) Socket:

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCI-E 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s)- NVMe / AHCI SSD

Supports SATA III (6.0Gb/s) SSD

*M.2 (M Key) Socket (M2_PCIE-SATA1):

The bandwidth is dependent on the CPU

Supports PCI-E 4.0 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen

Matisse.

LAN

Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Supports Super LAN Surge Protection

USB

8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT

1 x PCIe 4.0/ 3.0 x16 Slot:

Supports PCIe 4.0 x16 mode with AMD Ryzen processors. (Matisse only)

Supports PCIe 3.0 x16 mode AMD Ryzen with Radeon Vega Graphics processors.

2 x PCIe 3.0 x1 Slots

*According to different CPUs will have different speeds.

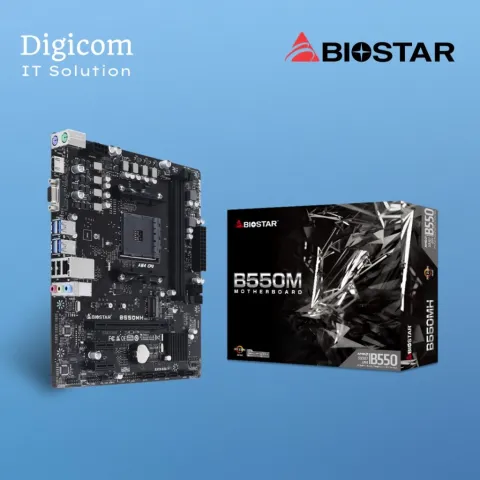

MOTHERBOARD BIOSTAR B550MH

Rp 1.150.000
