Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/RGB ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports up to 2 displays simultaneously

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)

2 x PCIe 2.0 x1

Storage

Intel® H110 chipset :

1 x M.2 Socket 3,

4 x SATA 6Gb/s port(s)*1,

Intel® Rapid Storage Technology Enterprise supports*2

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek ALC887/897 8-Channel High Definition Audio CODEC *3

- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- LED-illuminated design

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese-made audio capacitors

USB Ports

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® H110 chipset :

6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)

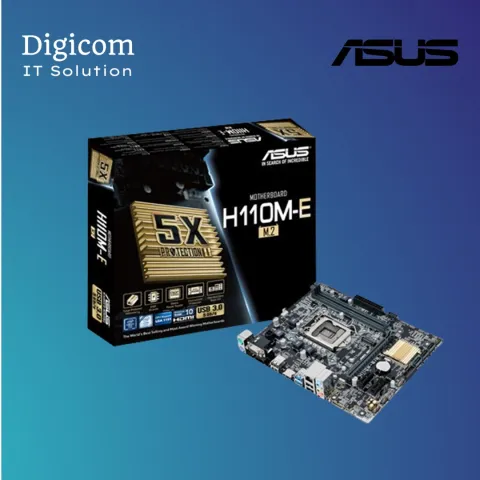

MOTHERBOARD ASUS H110M-E M.2

Rp 980.000
