CPU

- Support for Socket FM1 100W processors

- Supports AMD's Cool 'n' Quiet Technology

- UMI-Link GEN2

Chipset

- AMD A75 FCH (Hudson-D3)

Memory

- Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 32Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, SB Voltage Multi-adjustment

Graphics

- Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB

- Two graphics output options: Support HDMI and D-Sub ports by independent display controllers

- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

- Supports Blu-ray Stereoscopic 3D with HDMI

- Supports AMD Steady Video™: New video post processing capability for automatic jitter reduction on home/online video

- Supports HDCP function with HDMI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

*Some of AMD FM1 CPU (i.e AMD Athlon/Sempron family FM1 CPU) does not have integrated graphics processor. When this kind of CPU is installed, a discrete VGA card is required.

Audio

- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

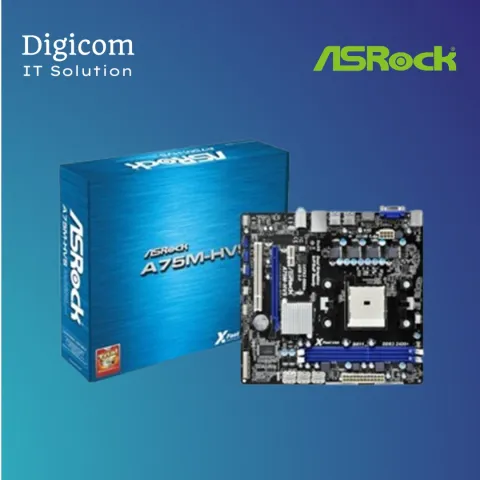

MOTHERBOARD ASROCK A75M-HVS

MOTHERBOARD ASROCK A75M-HVS

Rp 735.000
