SPECIFICATION

Platform : INTEL Socket 1150

Model Name : H81-MA2-V4

Chipset : Intel® H81

CPU Supports : Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® /

Celeron® /

Xeon® Processors (CPU up to 95 watts)

FSB : 1066 / 1333 / 1600 / 1860MHz

Memory : Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz

Dimm : 2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics : Integrated Graphics Processor

PCI/PCI-E Slots :

1 x PCI Express x16 3.0 slot,

1 x PCI Express x1 slot

SATA :

2 x SATA3,

2 x SATA2,

1 x M.2 (PCIe NVMe Gen3 x4 )

IDE : N/A

Audio : Realtek 662 on board, Supports 6-channel audio-out

LAN : Realtek RTL8111 1000Mbps Ethernet on board

Back Panel I/Os :

1 x HDMI Port

1 x D-Sub (VGA) Port

2 x USB 3.0 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port with LED

3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors :

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s),

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

1 x Front Panel Audio pinheader

BIOS : UEFI BIOS

Form Factor : Micro-ATX (17*19cm)

Mounting : 4 mounting holes

Accessories :

1 x SATA II cable

1 x I/O Rear Panel

1 x User Manual

1 x Driver CD

Design of Gigabit high-speed network card

Rapid transmission is always ready

Rambling mainstream game world

Wonderful design rendering effect

Satisfy all your computing demands

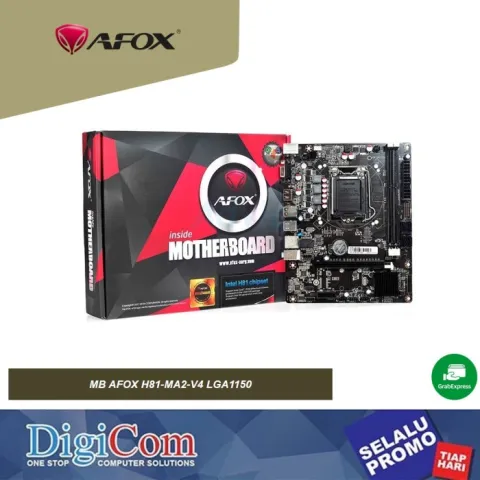

MOTHERBOARD AFOX H81-MA2-V4 LGA1150

Rp 770.000
