Specifications

Model : CS-H9c-R100-8G55WKFL

Camera

Image Sensor : 1/2.7" Progressive Scan CMOS

Shutter Speed : Self-adaptive shutter

Lens : Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°

PT Angle : Pan: 350°, Tilt: 80°

Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens Mount : M12

Day & Night : IR-cut filter with auto-switching

DNR : 3D DNR

WDR : Digital WDR

Black & White Night : 30m / 98ft

Video & Audio

Max Resolution : 2880 × 1620

Frame Rate : Max:15fps; Self-Adaptive during network transmission

Video Compression : H.265 / H.264

H.265 Type : Main Profile

Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate : Self-Adaptive

Network

Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

Frequency Range : 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth : Supports 20MHz

Transmission Rate : 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps

Wi-Fi Pairing : AP paring

Protocol : EZVIZ cloud proprietary protocol

Interface Protocol : EZVIZ cloud proprietary protocol

Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Security : WPA-PSK/WPA2-PSK

Functions

Smart Alarm : AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection

Auto Tracking : Supports

Customized Alert Area : Supports

Two-way Talk : Supports

Preset Locations : Supports

General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage : Supports microSD Card (Up to 512 GB)

Cloud Storage : EZVIZ CloudPlay storage

General

Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)

IP Grade : Weatherproof Design

Power Supply : DC 12V/1.5A

Power Consumption : MAX. 12W

Dimensions : 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)

Packaging Dimensions : 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)

Weight : Net Weight: 668 g With Package: 960 g

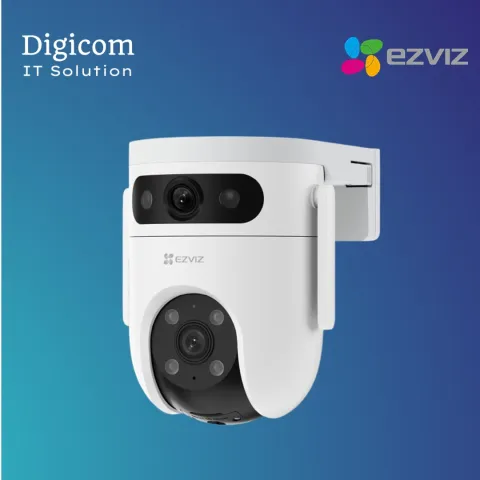

IP CAMERA EZVIZ CS-H9C DUAL LENS PAN 3MP

IP CAMERA EZVIZ CS-H9C DUAL LENS PAN 3MP

Rp 930.000

Deskripsi
