Specifications

Model Model CS-H8c (1080P)

Camera

Image Sensor 1/2.8" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm @ F2.0, viewing angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F2.0, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)

PT Angle Pan: 350°, Tilt: 80°

Minimum Illumination 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Lens Mount M12

Day & Night IR-Cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

Night Vision Distance 30 m / 98 ft

Video & Audio

Max. Resolution 1920 × 1080

Frame Rate Max: 30fps; Self-Adaptive during network transmission

Video Compression H.265 / H.264

H.265 Type Main Profile

Video Bit Rate Full HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 2 Mbps

Network

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Transmission Rate 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ Cloud Proprietary Protocol

Interface Protocol EZVIZ Cloud Proprietary Protocol

Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Storage

Local Storage MicroSD card slot (Up to 512GB)

Cloud Storage EZVIZ Cloud Storage (Subscription Required)

Function

Smart Alarm AI-Powered Human Shape Detection

Customized Alert Area Supports

Two-way Talk Supports

General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General

Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

IP Grade Weatherproof Design

Power Supply DC 12V / 1A

Power Consumption MAX. 12W

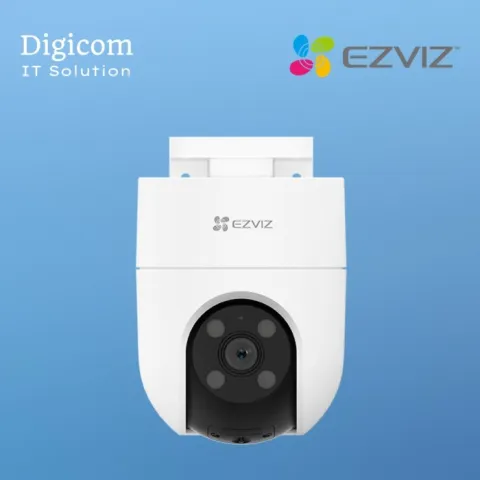

IP CAMERA EZVIZ CS-H8C 2MP

IP CAMERA EZVIZ CS-H8C 2MP

Rp 730.000
