ACT-818

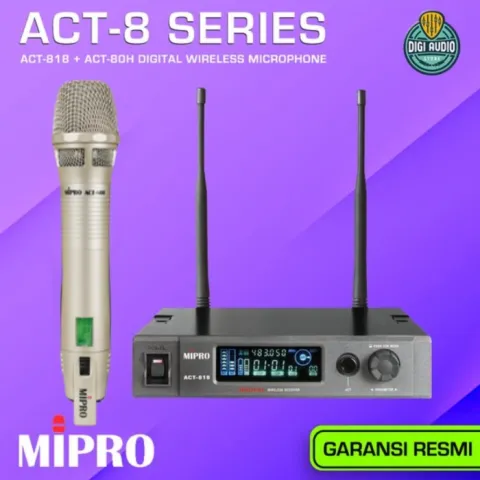

ACT-818 1/2U Single-Channel Wideband Digital Receiver

Isi Dalam Paket :

- 1x Microphone ACT-80H

- 1x Receiver Set ACT-818

- Manual Book

- Kartu Garansi Resmi Distributor MIPRO INDONESIA

RECEIVER :

Model : ACT-818

Name : 1/2U Single-Channel Wideband Digital Receiver

Chassis : EIA-Standard 1/2U metal chassis

Monitor Output : No

Network Interface : No

Display : A newly designed color VFD

Frequency Range : UHF 480 ~ 934 MHz (country dependent)

Bandwidth : 72 MHz

Receiving Mode : Digital diversity receiving

Sensitivity : 12 dBμV @ S/N > 100 dB

Audio Processing : DSP audio processor eliminates the compander noise that exists in analog systems.

Frequency Response : 20 Hz ~ 20 kHz (< -2 dB)

Dynamic Range : > 120 dBA

Latency : 2.9 ms

Audio Output : AES / EBU digital interface. Analog balanced output, +16 dB / 0dB / -6 dB switchable.

EQ : Presets 10 digital audio and anti-feedback EQ

PC Interface : USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)

Antenna : Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

Power Supply : External 100~240V AC switching power supply

Dimensions : 210 × 44 × 163 mm (W×H×D)

Weight : Approx. 1.0 kg

Housing Aluminum Magnesium

Mic Capsule Module Interchangeable Condenser or Dynamic

Display Green backlit LCD displays various parameters

Frequency Range UHF 480 ~ 934 MHz (country dependent

Bandwidth 64 MHz

Encryption 256 bits

Modulation Mode New digital modulation

Audio Compression DSP Inertial coding

RF Power Output 10 mW / 50 mW switchable (country dependent), 50

Spurious Emission < 4 nW

Gain Setting 6 dB, 3 dB, 0 dB (3 settings). 0 dB = microphone capsule sensitivity

Dimensions (Ø × L) 51 × 258 mm

Net Weight Approx. 323 g

Battery 2 × AA alkaline

Operating Time Min. 12 hr

Microphone Wireless MIPRO ACT818 ACT80H Mic - Mikrofon Vocal - Gold

Microphone Wireless MIPRO ACT818 ACT80H Mic - Mikrofon Vocal - Gold

Rp 11.900.000
