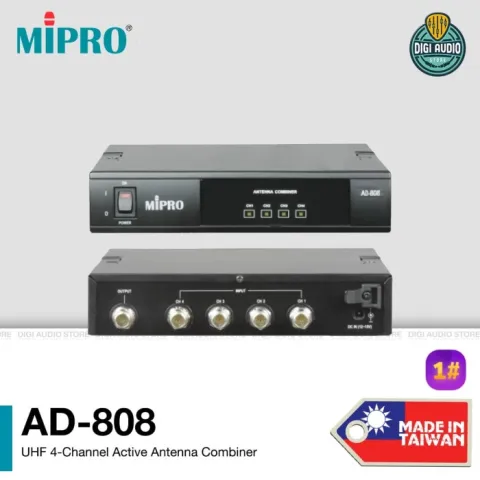

AD-808 UHF 4-channel Active Antenna Combiner

Introduced in 2005, the AD-808 UHF 4-channel active antenna combiner, optimized in the 470 ~ 960 MHz frequency range, is designed for combining the signals of 4 MIPRO MI-909T transmitters into 1 signal, and then transmits that signal from one antenna, reducing stage clutter and improving intermodulation distortion performance. The maximum RF input power is +20 dBm (100 mW) with an input signal indicator (threshold above +6 dBm) for monitoring. Its ideal intermodulation characteristics (3rd order IM < -57 dBc under full band performance +15 dBm two-tone test) help to make it ideal for professional stages.

Wideband frequency ranges from 470 ~ 960 MHz.

Operates with up to 4 transmitters.

Input signal indicator (threshold above +6 dBm).

Maximum RF input power +20 dBm (100 mW).

Ideal intermodulation characteristics (3 rd order IM< -57 dBc under full band performance +15 dBm two-tone test)

Frequency Range UHF 470 ~ 960 MHz

Gain 0 dB ± 2 dB

Max. RF Input Power 20 dBm (100 mW)

Inter-modulation Distortion < -57 dBc

Input / Output Connectors TNC female (4-input, 1-output)

System Impedance 50 Ω

Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 × 1.7 × 8.1 "

Net Weight Approx. 1.1 kg / 2.4 lbs

Note Refer to actual product in the event of product description discrepancy.
