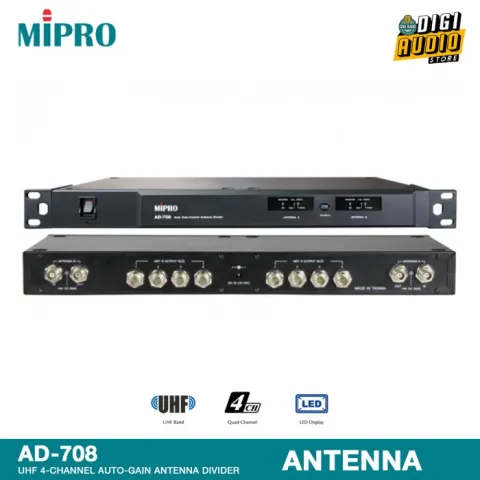

MIPRO AD-708 UHF Wideband 4-channel Auto-Gain Control Antenna Divider

- Optimized in the 470 ~ 850 MHz frequency range and complies with FCC and EU telecom regulations. Output gain is about 1 dB. The antenna connector supplies bias for boosters. Designed with high dynamic, low noise components and an ultra-wideband circuit, it features ultra-low intermodulation and insertion loss and can eliminate the multi-channel spurious interference. Bright LED indicators on the panel are designed for correctly identifying if the antenna cable is connected and the status of booster compensation.

- Pairing with an MPB-30 gain-controllable antenna booster, the AD-708 can detect the cable loss, automatically adjust the booster to precisely compensate for the loss, and eliminate the intermodulation distortion.

Model AD-708

Name Wideband 4-channel with Auto Gain Controller Antenna Divider

Frequency Range UHF 470 ~ 850 MHz

Signal Loss Detection Detects the cable loss for automatic gain adjustment of antenna booster.

Input / Output Gain 1 dB ± 1 dB

Input / Output Connectors 2 sets of 1-to-4 active divider outputs; 2 sets of 1-to-1 active outputs. TNC female. 50 Ω Impedance.

Antenna Input Bias 8.3 V DC, 230 mA

Power Supply 12 ~ 15 V DC

Dimensions 420 × 44 × 180 mm (W × H × D)

Note Refer to the actual product in the event of product description discrepancy.
