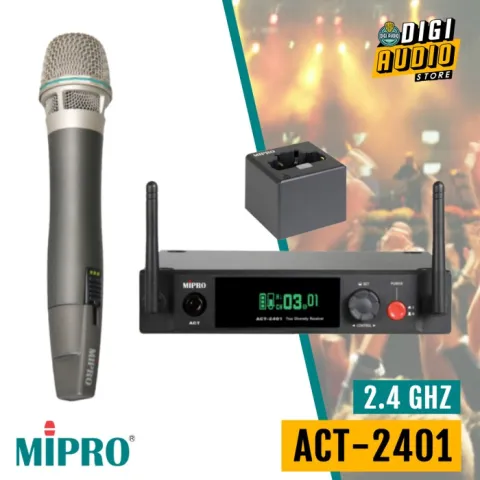

ACT-2401 2.4 GHz 1/2U Single-Channel Digital Receiver

🟢 Brand & Tipe : ACT-2401 + ACT-24H

🟢 Produk Resmi Distributor MIPRO INDONESIA

🟢 Original Made in Taiwan

ISI DALAM PAKET :

➡️ 1 Unit Receiver & Acessories ACT-2401 Series

➡️ 1 Unit Trasnmitter Microphone

➡️ 1 Unit Charger

➡️ Manual Book

➡️ Kartu Garansi Resmi

RECEIVER :

- ACT-2401 is single-channel in 1/2U metal chassis with a built-in high-efficiency antenna in the front panel.

- Designed with the same front panel with a graphic OLED screen that provides a larger field of view and the same operating method in MIPRO style for digital models.

- Stable digital modulation circuitry. 12 channels of interference-free operation are located in a single frequency band.

- Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.

- The precisely designed PCB is secured in a sturdy case for ultra-low malfunction.

Channel Single

Chassis EIA Standard 1/2U metal black case

Antenna Built-in front panel

Frequency Range ISM 2.4 GHz band (2,400~2,483.5 MHz)

Preset Frequency 12

Receiving Mode Dual-tuner true diversity receiving

Sample Rate 24-bit / 44.1 kHz

Frequency Response 20 Hz ~ 20 kHz

Latency < 4.0 ms

Dynamic Range 117 dBA

Output Connectors Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range.

Power Supply External 100~240V AC switching power supply

Transmitter :

Two selectable settings of RF output power.

The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise and ensures sound clarity.

Proprietary capsule suspension design eliminates vibrations and touch noises for a true natural sound reproduction.

Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.

World’s first ACT™ function provides precise and rapid frequency sync to the receiver.

The transmitter can be either charged by directly placing it in the MP-80 charger or removing the 18500 lithium-ion battery

Digital Wireless Microphone 2.4 Ghz MIPRO ACT-2401 ACT-24H Mic Vocal

Digital Wireless Microphone 2.4 Ghz MIPRO ACT-2401 ACT-24H Mic Vocal

Rp 5.600.000
