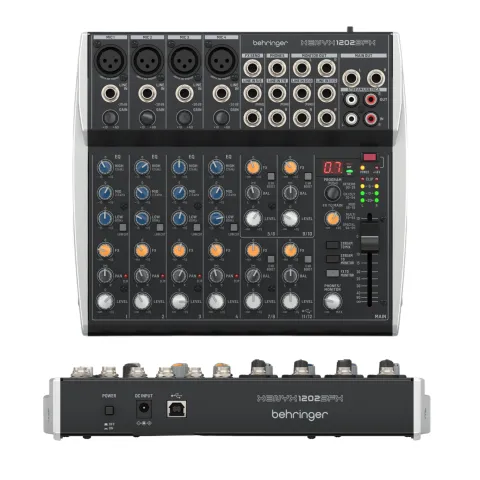

Premium Analog 12-Input Mixer with USB Streaming Interface and Klark Teknik Effects

Ultra-low noise analog mixer for streaming, podcasting and recording

4 Award winning XENYX microphone preamps for warm and musical sound

Stereo USB audio interface to connect to your computer or mobile device

Klark Teknik FX processor with 100 great sounding presets

Direct mixing of PC / gaming sounds into the streaming output

Analog mixing and equalization for pure sound

Versatile sub mixer for network enabled audio devices

Stereo channel 11/12 automatically switches between TRS input and USB playback

3-band EQs for warm and musical sound

FX send control per channel for internal or external FX processor

High-quality monitoring, phones and streaming outputs

Stereo RCA inputs assignable to main mix or monitor/phones outputs

Specification

Mono Inputs

Microphone Input

Balanced XLR, discrete input circuit

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance 2 kΩ balanced

Distortion (THD + N) 1 kHz

@ +10 dB Gain: 0.005%

Mono Line Inputs

1/4" TRS connector balanced

Impedance: 22 kΩ Balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line

1/4" TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ Balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)

RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER

Low

80 Hz/±15 dB

Mid

2.5 kHz/±15 dB

High

12 kHz/±15 dB

Main, Monitor & FX Send Outputs

Type

1/4" TRS connector impedance-balanced

Impedance

120 Ω

Max output level

21 dBu

Phones Out

Type

1/4" TRS connector unbalanced

Impedance

23 Ω

Max output level

19 dBu/150 Ω

STREAM out (Analog)

Type

RCA connector unbalanced

Impedance

1 kΩ unbalanced

Max output level 10

10 dBu

Audio Mixer BEHRINGER XENYX 1202SFX - Premium Analog 12-Input Mixer with USB Streaming Interface and Klark Teknik Effects

Audio Mixer BEHRINGER XENYX 1202SFX - Premium Analog 12-Input Mixer with USB Streaming Interface and Klark Teknik Effects

Rp 3.347.500

Deskripsi
