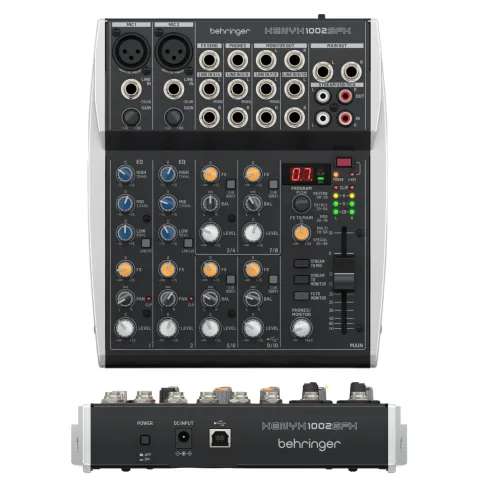

Premium Analog 10-Input Mixer with USB Streaming Interface and Klark Teknik Effects

Ultra-low noise analog mixer for streaming, podcasting and recording

2 Award winning XENYX microphone preamps for warm and musical sound

Stereo USB audio interface to connect to your computer or mobile device

Klark Teknik FX processor with 100 great sounding presets

Direct mixing of PC / gaming sounds into the streaming output

Analog mixing and equalization for pure sound

Versatile sub mixer for network enabled audio devices

Stereo channel 9/10 automatically switches between TRS input and USB playback

3-band EQs for warm and musical sound

FX send control per channel for internal or external FX processor

High-quality monitoring, phones and streaming outputs

Stereo RCA inputs assignable to main mix or monitor/phones outputs

Mono Inputs

Microphone Input

Balanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance 2 kΩ balanced

Distortion (THD + N) 1 kHz

@ +10 dB Gain: 0.005%

Mono Line Inputs

1/4" TRS connector balanced

Impedance: 22 kΩ Balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line

1/4" TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ Balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)

RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER

Low

80 Hz/±15 dB

Mid

2.5 kHz/±15 dB

High

12 kHz/±15 dB

STREAM out (Analog)

Type

RCA connector unbalanced

Impedance

1 kΩ unbalanced

Max output level

10 dBu

FX Section

Type

Klark Teknik

Converter

24-bit Sigma Delta

Sample Rate

40 kHz

USB

Type

Type-B connector

USB Audio Data

48 kHz 16 Bit

UAC2 Class Compliant

stereo in/out

Audio Mixer BEHRINGER XENYX 1002SFX - 10 Input - USB Streaming Interface & Klark Teknik Effects

Audio Mixer BEHRINGER XENYX 1002SFX - 10 Input - USB Streaming Interface & Klark Teknik Effects

Rp 2.863.400

Deskripsi
