Description

This serial port card is a product specially designed for banks, securities, supermarkets and other financial industries. It provides the first pin (first pin) of DB9 serial port and can be set in three states through jumpers. CD (serial port original signal), + 5V, +12V. For the password keyboard, gold keyboard, scanner gun, external LED display and other equipment power supply, the board is designed with self-recovery insurance, when the current exceeds the design, automatically cut off the power to protect the device or the host due to excessive current caused damage. This serial port card is designed with PCI-Express 1x bus and can also be connected to PCI-Express 2x, 4x, 8x, 16x slots. Can be connected to 8CM short iron, can be used in a 2U standard chassis.

Specifications:
1. Using ASIX99100 chip
2. Complies with PCI-Express specification Revision 1.1
3. PCI-Express Single-Lane (x1) Bus Bandwidth 2.5Gbps
4. Support serial port number change
5. I/O address: Assigned by the BIOS, IRQ
6. Assigned by the BIOS
7. Can be connected to 8CM short iron (short iron is optional)
8. Support DOS, Windows 10 / 8 / 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5 and other operating systems

Serial interface (RS232):
1. Meets industry standard 16C450/16C550 UART
2. Built-in 256-byte FIFO and on-chip H/W, S/W flow control function
3. Each serial data transmission rate can be up to 250Kbps (customized version data transmission up to 1Mbps)
4. Baud rate: 50 bps to 250 Kbps
5. Serial communication parameters Data bits: 5,6,7,8
6. Stop position: 1,1.5,2
7. Parity: None, Even, Odd, Space, Mark
8. Flow Control: RTS/CTS, XON/XOFF
9. Serial Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDSupports 5-, 6-, 7-, 8-bit serial format serial interface

Package content:

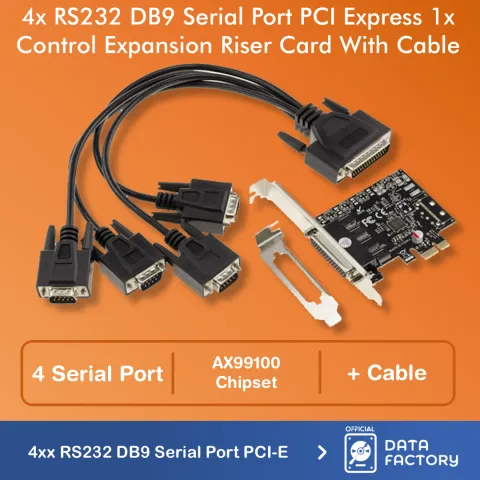

1 x 4 Port RS232 Serial to PCIE 1X Riser Card.

1 x 4 Port DB9 Break-out cable.

PCIE RS232 SERIAL 4 PORT / PCI EXPRESS RS232 SERIAL 4PORT DB9 Multi-Port Expansion Card PCI-E 1x Riser Card AX99100 Chip

PCIE RS232 SERIAL 4 PORT / PCI EXPRESS RS232 SERIAL 4PORT DB9 Multi-Port Expansion Card PCI-E 1x Riser Card AX99100 Chip

Rp 399.999
