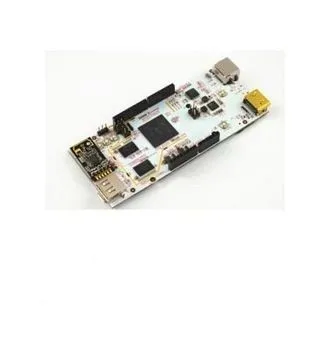

pcDuino V2 is a high performance, cost effective mini PC platform that runs PC like OS such as Ubuntu and Android ICS.pcDuino has hardware headers interface compatible with Arduino, HDMI output, SD card slot, and USB plugs. It is powered by 1GHz ARM Cortex A8 CPU and features 1GB RAM and 2GB FLASH.

pcDuino outputs its screen to HDMI enabled TV or monitor via the built in HDMI interface. It is specially targeted for the fast growing demands from the open source community. The platform could run full blown PC like OS with easy to use tool chain and compatible with the popular Arduino ecosystem such as Arduino Shields and open source projects etc.

pcDuino V2 has a built-in WiFi module and Arduino headers. Ubuntu images are same for both pcDuino and pcDuino V2.

Hardware Specifications

CPU: 1GHz ARM Cortex A8

GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core

DRAM: 1GB

Onboard Storage: 2GB Flash, microSD card (TF) slot for up to 32GB

Video Outpu: HDMI

OS: Linux3.0 + Ubuntu 12.04Android ICS 4.0

Extension Interface: Arduino Headers

Network interface: 10/100Mbps RJ45 and on-board WiFi module

Number of USB Host port: 1

Power: 5V, 2000mA

Overall Size: 125mm * 52mm

Software Specifications

OS: Ubuntu 12.04

Android ICS 4.0

API: All the arduino shield pins are accessible with the provided API

It consists of API to access the following interfaces: UART,ADC,PWM,GPIO,I2C,SPI

Programming language support: C, C++ with GNU tool chain, Java with standard Android SDK, Python

Shipping List

pcDuino v2 1 uint
